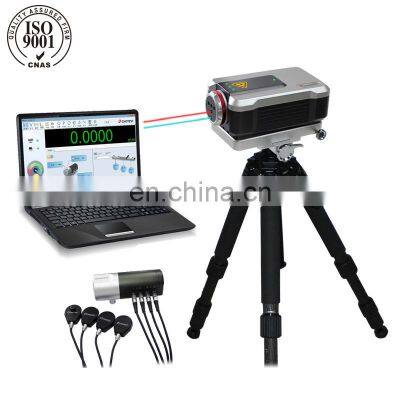

Product Overview SJ6000 Laser Interferometer Measurement SystemLaser interferometer is recognized as a high precision, high sensitive measuring method by applying light wavelength as criterion, and is widely used in high-end manufacturing domain. SJ6000 laser interferometer insists of high-frequency Helium-Neon laser generator from a USA supplier, high-precisionenvironmental compensation modules, high-precision laser interference signal processing system, high-performance computer control system. By applying with thermal frequency stabilization technology of laser dual-longitudinal mode and geometric parameters interference optical path design, SJ6000 can output long-term stable and high-precision(0.05ppm) laser quickly(about 6 minutes) which has powerful anti-interference performance. With different prism modules, it can measure linearity, angle, straightness, Flatness and perpendicularity, in addition it can analyze dynamic characteristics. SJ6000 has many advantages, such as high precision, high speed, high resolution, long range. FEATURES AT A GLANCE Product Functions1. High precision of measurement: Resolution is up to nanoscale based on the technology of laser interferometry; Withhigh-precision environmental compensation unit, influences to measuring result from ambient temperature, pressure, humidity and material temperature are eliminated; It can ensure long-term frequency stability of laser by using the laser thermal frequency stabilization control system; The design of separating interferoscope from host avoids heat distortion of interferoscope, which ensures the stability of interference optical path.2. It can measure linearity, angle, straightness, perpendicularity and other geometrical parameters; It can measure the linear positioning accuracy and repeated positioning accuracy of guide rails for CNC machine tools, coordinate measuring machines and other precision motion equipments; It can measure the pitch angle, swing angle, perpendicularity and straightness of the guide rails, in addition it can calibrate rotary axis of machine tools.3. According to compensation settings by user, the system automatically generates error compensation table for calibration of machine tools.4. With functions of Dynamic measurements (displacement-time curve, velocity-time curve, acceleration-time curve), amplitude measurement and frequency analysis, it can analyze vibration test of machine tool, dynamic characteristics of ball screw, response characteristics of drive system, dynamic characteristics of guide rail and so on.5. Built-in domestic & international standards, such as GB, ISO, BS, ANSI, DIN, JIS and so on. The system analyzes and processes data according to relevant standard, finally generates test reports including corresponding carve charts and data.6. Can automatically acquire the parameters of environment temperature, material temperature, environment humidity and atmospheric pressure. Can set environmental compensation by hand, or by system automatically.7. With centralized database management for measuring records, the user can query and manage the measuring records according to object type, testing institution, manufacturing number, inspector, submitted institution, equipment number, inspection date and effective date; Can export the data to Word, Excel, AutoCAD (optional) files.8. Easy to install: Basic weight 15kg, convenient and portable. PRODUCT SPECIFICATIONS System parameters: 1. Measuring method: single frequency 2. Laser frequency accuracy: 0.05ppm 3. Dynamic capture rate: 50kHz 4. Warm-up time: about 6 min 5. Operating temperature: (0-40)℃ 6. Environment temperature: (0-40)℃, humidity: 0-95% 7. Storage temperature: -20℃-70℃ Environmental sensors: 1. Atmospheric temperature sensor : ±0.1℃ (0-40)℃, resolution: 0.01℃ 2. Material temperature sensor: ±0.1℃ (0-55)℃, resolution: 0.01℃ 3. Atmospheric humidity sensor: ±5% RH(0-95%)RH 4. Atmospheric pressure sensor: ±0.1kPa (65~115)kPa Linear measurement: 1. Measuring range: (0-80)m 2. Measuring accuracy: 0.5ppm (0-40)℃ 3. Measuring resolution: 1nm 4. Maximum measuring speed: 4m/s Angle measurement: 1. Axial range: (0-15)m 2. Measuring range: ±10° 3. Accuracy: ±(0.02%R+0.1+0.24M)″ (R is indicating value, unit: ″; M is measured length in m) 4. Measuring resolution: 0.01″ Flatness measurement: 1. Axial range: (0-15) m 2. Flatness measuring range: ±1.5 mm 3. Accuracy: ±(0.2%R+0.02M2) μm (R is indicating value in μm; M is measured length in m) 4. Substrate size: 180mm adjustable, 360mm adjustable 5. Measuring resolution: 0.1μm Straightness measurement: ItemAxis rangeMeasuring rangeAccuracyResolutionShort Distance(0.1-4)m±3.0mm±(0.5+0.25%R+0.15M2)μm0.01μmLong Distance(1-20)m±3.0mm±(5.0+2.5%R+0.015M2)μm0.1μmNote: R is indicating value in μm; M is measured length in meters Perpendicularity measurement: ItemAxis rangeMeasuring rangeAccuracyResolutionShort Distance(0.1-3)m±3/M mm/m±(2.5+0.25%R+0.8M)μm/m0.01μmLong Distance(1-15)m±3/M mm/m±(2.5+2.5%R+0.08M)μm/m0.01μmNote: R is indicating value in μm; M is measured length in meters Rotary axis measurement: 1. Measuring range of angle: 0-360° 2. Max axis rotation speed: 10rpm 3. Pitch accuracy of precision turntable: ±1″ 4. Resolution: 0.1″ 5. Power Supply: Li-On rechargeable 6. Signal transfer via wireless bluetooth Products Application Product packaging 1. SJ6000 host machine 1 pc2. Environmental compensation modules 1 set 3. Prism modules For linear measurement (standard) 1 set For micro angle measurement(optional) 1 set For straightness measurement (optional) 1 set For perpendicularity measurement (optional ) 1 set For flatness measurement (optional) 1 set For axis of rotation measurement (optional) 1 set4. Measuring Software 1 pc5. Laptop computer 1 pc6. Portable case 1 pc7. Universal tripod 1 pc8. Pan/tilt holder 1 pc9. Magnetic bases for prism module 1 set10. Instruction Manual 1 pc11. Product certification and Warranty card 1 set12. Free services and repairs 1 year Why Choose Us Who is CHTEST?CHOTEST is not only a software company but also a national high-tech enterprise integrating research, development, production and sales, which is specialized in designing and producing precision measurement instruments, calibration instruments and laser length measuring device. The company has 2,000 square meters of modern office well equipped with advanced research facilities. In addition, it owns 5,000 square meters of precision machining and assembly factory. All products are manufactured in accordance with ISO9001 standard. The company is always living up to the motto that is providing our customers with top quality products. At present, the company has dozens of self-developed products with new technology, widely used in government Metrology and Quality Inspection agencies, international military, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and otherindustries. The company also has involved in developing a number of national standards and has made its due contribution for China's metrology and testing technology progress. CHOTEST focuses on technology development of precision measurement equipments and sophisticated testing equipments. It constantly challenges to all kinds of technical barriers and technology monopoly. The goal of the company is to provide high-end measuring equipments to manufacturing industry in all over the world. FAQ 1. Are you factory?Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.2. How many years experience do you have?We have 16 years experience on measurement instruments and calibration instruments since 2002. 3. What size of your factory?We have 5000 square meters of factory and 2,000 square meters of modern office 4. Can you accept OEM and ODM?No, we only sell the products under Chotest brand. 5. Can I become your distributor of High precision laser length measuring device for measuring machine calibration?Yes, please contact our sales engineer. 6. What is the lead time?Lead time is 30-60days in usual. 7. What is your payment term?30% deposit first, balance payment before delivery. We accept T/T, L/C. 8. How to install the machine?We dispatch our engineers to install and debug the machine in site of the customer. 9. What is your warranty term?We provide 1 year warranty after acceptance inspection by customer.Free repair or replacement in 1 year warranty in case of any problem.Response in 12 hours for emails or calls from customers in working days.
>>
