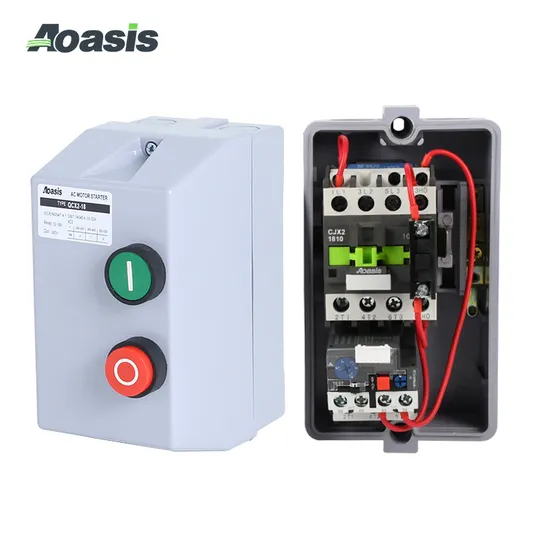

Aoasis Qcx2-18 12A-18A Magnetic Starter Switch 3 Phase 220V 380V Dol Motor Starter

Product Description

Product Description
QCX2-series magnetic starter mainly be applicable to the AC circuits of 50Hz/6OHz under rated voltage up to 380V and rated current up to 95A. lt is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse.And it can protect the motor from overload and interruption.

Characteristics:
Protection Grade: IP54,water-proof, dust-proof.
Can be equipped with indicator light(if need).

Application Condition:
Altitude: not exceed 2000m.
Temperature: -5ºC~+40ºC, average not exceed +35ºC in 24 hours.
Air Condition: At the mountain site, relative humidity not exceed 50% at the max temperature of +40ºC, higher relative humidity is allowable under
lower temperature.
Pollution Grade: Grade lll.
Mounting Condition: The inclination between the mounting plane and the vertical plane shall not exceed 5°.
The product shall be installed and operated at a place without obvious shake, impact and vibration.

Type	Selected AC Contactor	Thermal Relay	Setting Range	Rated Power (AC-3) IEC60947-4-1 GB14048.4
				200-240V		380-440V
				kW	HP	kW	HP
QCX2-09	CJX2-09	JR28-13	0.1-0.16A	0.02	1/38	0.06	1/13
		JR28-13	0.16-0.25A	0.03	1/25	0.09	1/9
		JR28-13	0.25-0.4A	0.06	1/13	0.12	1/6
		JR28-13	0.4-0.63A	0.09	1/9	0.25	1/3
		JR28-13	0.63-1A	0.18	1/4	0.37	1/2
		JR28-13	1-1.6A	0.25	1/3	0.55	3/4
		JR28-13	1.25-2A	0.37	1/2	0.55	3/4
		JR28-13	1.6-2.5A	0.55	3/4	0.75	1
		JR28-13	2.5-4A	0.75	1	1.1	1.5
		JR28-13	4-6A	1.1	1.5	2.2	3
		JR28-13	5.5-8A	1.5	2	3	4
		JR28-13	7-10A	2.2	3	4	5.5
QCX2-12	CJX2-12	JR28-13	9-13A	3	4	4	5.5
QCX2-18	CJX2-18	JR28-13	12-18A	4	5.5	5.5	7.5
QCX2-25	CJX2-25	JR28-13	17-25A	5.5	7.5	7.5	10
QCX2-32	CJX2-32	JR28-13	23-32A	7.5	10	11	15
		JR28-13	28-36A	7.5	10	15	20

External Dimensions(mm):
