Environmental Water Spray IPX3 & IPX4

Product Details

Product Description

Product Description

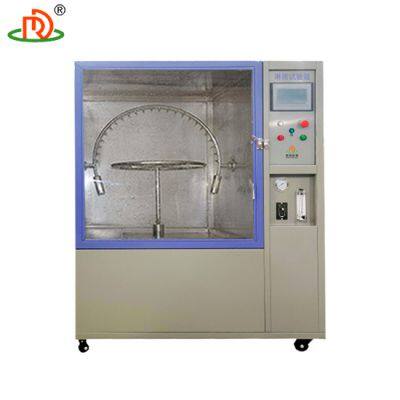

IPX34 Rain spray test room is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.
FEATURES
Studio equipped with lighting equipment
Rain time, interval time, rainfall intensity, regulate and control apart.
SPECIFICATION

nternal Dimension	600*600*600mm	800*800*800mm	1000*1000*1000mm
Extemal Dimension	1100*800*1500mm	1300*1000*1700mm	1500*1100*1700mm
Oscillating Tube	Radius 200mm	Radus 300mm	Radius 400mm
nternal Chamber Material	Stainless Steel 304
Extemal Chamber Materia	Stainless Stee Paint Coating
Observation Window	Waterproof Toughened Glass
Oscillating Angle	40°、90°、120、360
Oscillating Speed	PX3:2*120*for 4sIPX4:2*360*lor 12s
Spray Nozzle	0.4mm(IPX3,IPX4),0.8mm(IPX4K)
Distance Between Two Nozzles	50mm
Turntable Diameter	200mm	300mm	400mm
Turntable Rotation Speed	1-5 r/min
Water Flow Of Each Nozzle	Injector:0.07L/min±5%(IPX3&IPX4),0.6L/min±5%(IPX4)
Test Duration	1~999,999min,Adjustable
Water Cycling System	Built-in Chamber Bottom For Recycling
Power Source	Single-phase,AC220V,50Hz

---
