Advanced Wood Cutting Machine for Precision and Performance

Product Description

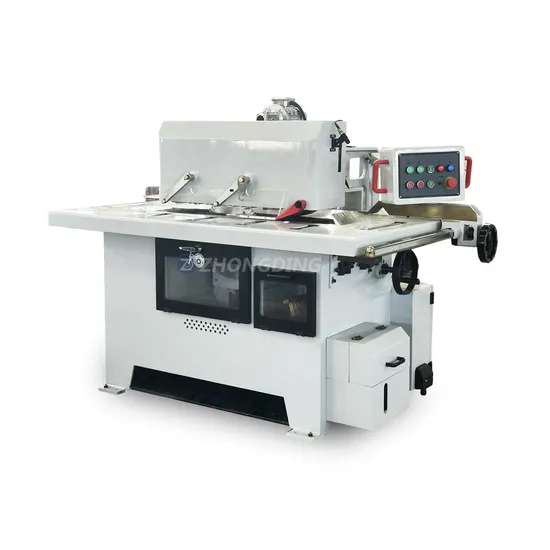

Thick Cut Single Saw Woodworking Cutter Machine Cutting Wood Machinery
MJ163
Product Parameters

Name	Unit	Parameter	Remark
Maximum saw thickness	mm	105	More than usual 80mm
Minimum saw length	mm	150	Less than usual 300mm
Distance between saw blade & bracket	mm	470
Mainshaft speed	r/min	2880
Feeding speed	m/min	14\19\25	Automatic & manual speed adjustment
Saw shaft diameter	mm	50.8
Saw blade specification		¢405×¢50.8×5×70T(or ¢350×¢50.8×3.2×70T) ¢405×¢50.8×5×70T(or¢350×¢50.8×3.2×70T)
Machine gross power	kw	12.2
Main saw motor	kw	10	2880r/min
Feeding motor	kw	2.2	Multi-gear motor by independent development
Pressure box lifting mode		Automatic & manual
Saw blade lifting mode		Manual
Feeding speed adjustment		Automatic & manual
Wood chips on feeding belt		Automatic
Wood chips in ash bucket		Smash automatically
Working table size	mm	1700×1000
Dust collector inlet diameter	mm	φ150×1
Size within the container	mm	1900×1400×1290	Length*width*height
Machine weight	kg	1000

Company Profile
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.Relying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as polishing machines,palner machine, press machine etc,which have been exported to lots of countries and regions,such as Europe,Russia,Southeast Asia,Middle East,North America,and Australia.Bring our products and services for more than 66 countrys people and customers.We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Product Effect
With our machines, we can make high quality products.
The track-type feeding chains wear well and boast high conveying planning accuracy. The new clamper makes the feeding more stable. The super-long guide rail guarantees the straightness timber of length. The sealed electric cabinet prevents the dust and any accidents there of. The three-layer rebounder makes the timber hard to rebound and ensures human safety. Machine is equipped with air dust removal device , to ensure processing environment clean.
