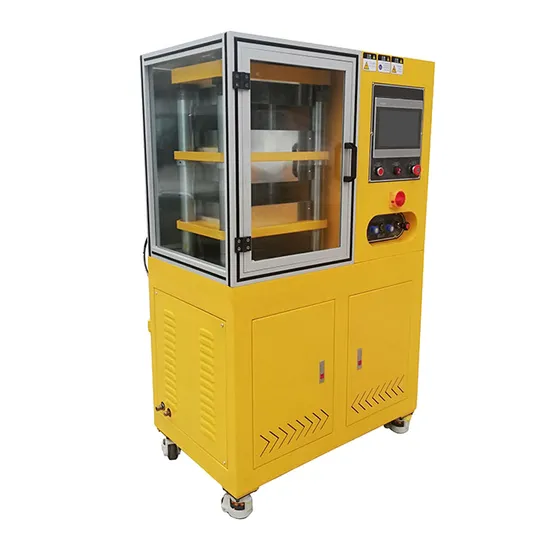

Laboratory Rubber Plastic Manual Automatic Silicone Small Flat Vulcanizing Machine

Product Description

Scope of application:
This machine is a medium-sized flat plate series vulcanizing machine, mainly used for vulcanizing rubber sundries and waterstop products. It generally adopts column type and frame type structure. The overall structure is compact, the shape is beautiful, and the mold clamping force is large. Each station The upper template can be heated to a high temperature of 180°C (adjustable), and the lower template can control the temperature at room temperature to form an effective temperature difference; this machine is suitable for various reflective material products such as trademarks with its unique dual-temperature station structure and high pressure characteristics. Such as compression and shaping, etc.
Features:
The machine has two heating types of steam and electric, mainly composed of three parts: main engine, hydraulic system and electric control system. The oil tank is installed separately on the left side of the main engine, and will not be affected by the temperature of the hot plate; Workers are easy to operate and have a spacious vision. The electric control box is separately installed on the right side of the main engine.
Product parameters:

Parameter/Model	HJ 350*350*2	HJ 300*300*2	HJ 400*400*2
Nominal clamping force (MN)	0.25	0.2	0.5
Hot plate spacing(mm)	125
Working layers of hot plate	2
Heat plate unit area pressure (Mpa)	2.04
Plunger stroke	250
heating method	Electricity/steam
main motor power	2.2	1.5	2.2
External thermal power	2.4KW/board	1.8KW/board	3KW/board
Dimensions length x width x height (mm)	1450*400*1350	1350*300*1300	1600*400*1400
Machine weight(kg)	800	700	1200
structure type	Column
High precision, low noise, no oil leakage, no pressure drop

---
