800um Si Avalanche Photodiode Apd Hybrid Preamplifier Csrayzer

US$1.00-9,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
CR800AH-1064-150M-LN
Production Process
Integration
Feature
SemiConductor
Certification
RoHS
Customized
Customized
Response Spectrum
400~1100nm
Active Diameter
800um
-3dB Bandwidth
150MHz
Temperature
-45~80
Transport Package
To8 Package with Flat Window
Trademark
CSRayzer
Origin
China
Production Capacity
5000pieces/Year

Product Description

80um SI APD Preamplifier Module
CR800AH-1064-150M-LN
Introduction

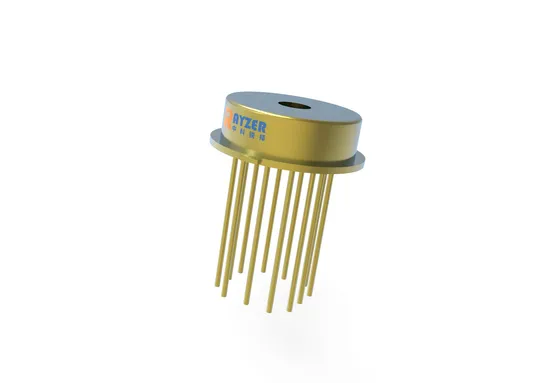

The CR800AH-1064-150M-LN includes a 800um SI Avalanche Photodiode with a hybrid preamplifier for the use in high-speed, ultra-low light detection, laser range finding, LIDAR, and free space communication.
Features 1. Built-in 800um SI APD+TIA 2. High sensitivity: ≥250kV/W 3. High bandwidth: 150Mhz 4. Wavelength range: 400~1100nm 5. Low noise and high reliability 6. TO8 package with flat window 7. Enhanced overload protection
Applications 1. LIDAR 2. Laser range finding 3. Free space optical communication (FSO) Absolute Maximum Ratings
Parameter Unit Symbol Rating
Reverse breakdown voltage V V R VBR
Operating temperature ºC T C -40~+85
Storage temperature ºC T STG -55~+100
Maximum optical input power mW P in 100
Module mains voltage V Vcc/V EE ±5
Power dissipation mW Pw 250
Soldering temperature(time) ºC - 300(10s)

Optical/Electrical Characteristics (T=25ºC , unless otherwise stated)
Parameter Symbol Value Unit Test conditions
Min Typ Max
Response Spectrum λ 400~1100 nm
Active Diameter D 800 um
Reverse breakdown voltage VBR 350 460 V
Operating voltage VR 0.95×VBR V M=100
Responsivity RV 250 kV/W M=100, 1.064um@τ=10ns
Dynamic range DY 25 dB M=100, 1.064um@τ=100ns
-3dB bandwidth BW 150 Mhz
Rise/Fall time tr
2.3 ns 10%-90%
Noise Equivalent Power NEP 150 fW/√Hz M=10,f=100kHz, △=1hz
Output impedance RO 50 Ω
Output Voltage Swing VO 0.7 V
Positive Supply Current ICC 30 mA
Negative Supply Current IEE 10 mA 50Ω Load
Temperature coefficient of Vop for constant gain γ 2.4 3.0 V/ oC -45~+85ºC
Concentricity △D 30 um

Order information
CR800AH-1064-150M-LN
CR-1-2-3-4
1-High Responsiveness Target Surface 2-Spectrum Response 3-Responsive Bandwidth 4-Customization Requirements
200AH: 0.2mm
800AH: 0.8mm
1000AH: 1.0mm
3000AH: 3.0mm …
1550: 1550nm
1064: 1064nm
940: 800~940nm
30M: 30MHz
50M: 50MHz
70M : 70MHz
100M: 100MHz
00: NO
LN: Low noise
