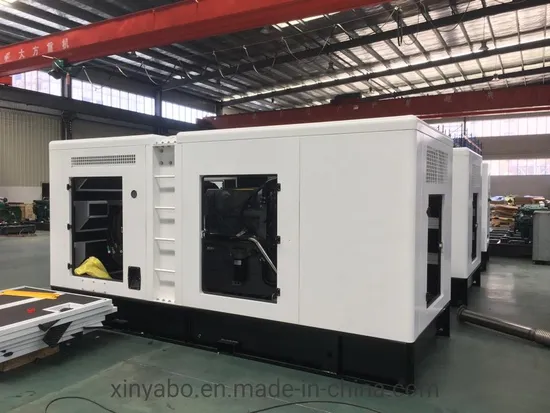

100kVA 200kVA 300kVA 400kVA 800kVA 1000kVA Soundproof Diesel Generator Perkins Power Generator

Product Description

Rated power	Engine	Alternator	Control panel
20kw~1300kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
8kw~1600kw	Perkins
68kw~504kw	Volvo
20kw~500kw	Deutz
220kw-2400kw	MTU
280kw-800kw	MAN
600kw-1800kw	Mitsubishi
50kw-650kw	Doosan Daewoo
2kw~2500kw	Chinese engines

Δ Standard Configuration of Perkins Open Type
1. Powered by Perkins engine
2. Leroy Somer alternator (Stamford, Meccalte for option)
3. Deepsea HGM 6110 control panel as standard, AMF Control Panel Deepsea DSE7320 & Smartgen HGM6120 for Option, ATS for Option
4) Chint breaker as standard, ABB, Schneider Breaker for Option
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery and battery switch
8) Industrial silencer and flexible exhaust hose
For open type, the genset will be much easier to maintain and repair with more durable performance and longer service life, so the cost performance is higher.
Δ More technical datas
Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 Standard
Prime output power: 5KVA - 2000 KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.
Phase/connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Original U.K. ENGINE:
Δ TECHNICAL DATA:

Technical Specification:
Generator Set Specification
Genset Model		GFP-12.5KVA		GFP-15KVA
		Sient	Open	Silent	Open
Frequency		50Hz	50Hz	50Hz	50Hz
Voltage		400/230V	400/230V	400/230V	400/230V
Phase		3	3	3	3
Prime Power (KW/KVA)		10/12.5	10/12.5	12/15.0	12/15.0
Stanby Power(KW/KVA		11/13.8	11/13.8	13.2/16.5	13.2/16.5
Weight And Demensions
Lenghth (mm)		1900	1300	1900	1300
width (mm)		850	700	850	700
Height (mm)		1350	1100	1350	1100
Weight (kgs)		630	390	680	430
Engine Specication
Engine Model		403A-15G1		403A-15G2
Prime/Standby power (kw)		12/13.2		13/15
Injection		Indirect		Indirect
Aspiration		Naturally Aspirated		Naturally Aspirated
No. of cylinders		3		3
Bore of Stroke (mm)		84x90		84x90
Displacement (L)		1.496		1.496
Cooling		water		water
Compression Ratio		22.5:1		22.5:1
Engine Oil capacity (L)		6		6
Coolant Capacity ( In radiator)		6		6
Governor		Mechanical		Mechanical
Air Filter		Dry Element		Dry Element
Fuel comsuption		at 50Hz		at 50Hz
Average data (L/h)		3.1		3.8
100% Load (L/h)		3.7		4.8
75% Load (L/h)		2.8		4.0
50% Load (L/h)		2.0		2.9
Alternator Specification
Brand		Leroy Somer		Leroy Somer
Model		TAL-A40-C		TAL-A40-D
Pole		4		4
Winding Connections		Star		Star
Insulation Class		H		H
Enclosure		IP23		IP23
Voltage Regulater		AVR		AVR
Steady StateVoltage Regulater		1%		1%
Bearing		single		single
Controller System
Brand		Deepsea		Deep Sea
Model		6120		6120

Δ GPC SERIES DIESEL GENERATOR SET POWER RANGE
50Hz
3 phase, 4 wires, 0.8PF, 1500rpm, 415-230V/240-115V

Genset Model	Prime Power		Standby Power		Engine model	Fuel consumption	Genset	Weight
							Dimension
	KW	KVA	KW	KVA		L/h	(mm)	(kg)
GFP9-I	7	9	8	10	403A-11G1	3.0	1088x449x891	330
GFP9-II	7	9	8	10	403D-11G	2.6	1088x449x891	330
GFP13-I	10	13	11	14	403A-15G1	3.7	1138x456x950	390
GFP13-II	10	13	11	14	403D-15G	3.6	1138x456x950	390
GFP15	12	15	13	17	403A-15G2	5.0	1138x456x960	420
GFP20-I	16	20	18	22	404A-22G1	5.3	1285x477x973	470
GFP20-II	16	20	18	22	404D-22G	5.3	1285x477x973	470
GFP30	24	30	26	33	1103A-33G	7.1	1461x630x1130	750
GFP45	36	45	40	50	1103A-33TG1	10.7	1493x634x1166	770
GFP60	48	60	53	66	1103A-33TG2	13.9	1530x750x1300	770
GFP65	52	65	57	72	1104A-44TG1	14.8	1730x630x1166	840
GFP80-I	64	80	70	88	1104A-44TG2	18.7	1730x630x1166	950
GFP80-II	64	80	70	88	1104C-44TAG1	18.6	1750x650x1260	950
GFP100	80	100	88	110	1104C-44TAG2	22.6	1850x700x1200	1120
GFP135	108	135	119	149	1106A-70TAG1	38.0	2175x750x1522	1400
GFP150	120	150	132	165	1106A-70TAG2	38.0	2175x750x1522	1400
GFP180	144	180	158	198	1106A-70TAG3	40.2	2500x900x1500	1500
GFP200-II	160	200	176	220	1106A-70TAG4*	47.0	2530x900x1560	1640
GFP200-II	160	200	176	220	1306A-E87TAG3	46.0	2530x900x1560	1640
GFP225	180	225	198	248	1306A-E87TAG4	50.0	2283x900x1522	1725
GFP250	200	250	220	275	1306A-E87TAG6	54.0	2458x900x1532	1800
GFP275	220	275	242	303	1606A-E93TAG4	56.0	2800x950x1650	2200
GFP300	240	300	264	330	1606A-E93TAG5	61.0	2900x1000x1700	2700
GFP350	280	350	308	385	2206C-E13TAG2	75.0	3029x1120x1871	3020
GFP400	320	400	352	440	2206C-E13TAG3	85.0	3000x1120x1946	3150
GFP450	360	450	396	495	2506C-E15TAG1	99.0	3100x1120x1960	3300
GFP500	400	500	440	550	2506C-E15TAG2	106.0	3200x1120x1960	3350
GFP600	480	600	528	660	2806C-E18TAG1A	129.0	3600x1600x2100	3650
GFP650	520	650	572	715	2806A-E18TAG2	132.0	3600x1600x2100	3880
GFP750	600	750	660	825	4006-23TAG2A	157.0	3800x1800x2180	4500
GFP800	640	800	704	880	4006-23TAG3A	172.0	3786x1710x2100	4500
GFP1000	800	1000	880	1100	4008TAG2A	220.0	4582x2050x2500	7600
GFP1250	1000	1250	1100	1375	4012-46TWG2A	262.0	4497x2050x2500	9600
GFP1350	1080	1350	1188	1485	4012-46TWG3A	285.0	5200x2050x2400	9900
GFP-1500	1200	1500	1320	1650	4012-46TWG4A	316.0	5200x2050x2400	9900
GFP1500-2	1200	1500	1320	1650	4012-46TAG2A	305.0	4762x2160x2509	10000
GFP1710	1368	1710	1505	1881	4012-46TAG3A	354.0	5600x2100x2500	10000
GFP1850	1480	1850	1628	2035	4016TAG1A	383.0	5582x2300x3300	12000
GFP2000-I	1600	2000	1760	2200	4016TAG2A	434.0	5682x2300x3300	14000
GFP2000-II	1600	2000	1760	2200	4016-61TRG2	422.0	6050x2400x3000	15000
GFP2250	1800	2250	1980	2475	4016-61TRG3	470.0	6500x2500x3320	16000

Δ GENSET FEATURES
1. Genuine Perkins industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, Yabo alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Δ ENGINE FEATURES
1. Genuine Perkins industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Δ ALTERNATOR FEATURES
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Yabo
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Δ DIGITAL CONTROL PANEL
Controller Brand: Smartgen, Deepsea,ComAp
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Δ STANDARD SUPPLY SCOPE

Exhaust silencer	Flexible pipes	Flange	Base frame	Main circuit breaker
Starting battery	Battery wires	Battery charger	Float battery charger	AVR
Cooling radiator	Wires diagram	Manual books	Auto control panel	Silent canopy

Δ OPTIONAL PARTS

Engine & Radiator	Alternator part	Electric part	Fuel tank part	Others
Water preheater	PMG	ATS	External daily fuel tank	Weatherproof canopy
Lub oil pre-heater	Anti-condensation heater	Synchronization panel	Automatic fuel pump	Mobile trailer
Spare parts	Parallel droop	ABB breaker	Oil drain pump	Containerized

Δ FAQ (FREQUENCY ASKED QUESTION)
Question: What's your warranty period?
Answer: Our payment terms is 1 year or 1000 running hours whichever comes first.
But based on some special project, we can extended our warranty period.
Question: Does your generators has global warranty?
Answer: Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service.
And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM & ODM service.
Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment.
Or 100% irrevocable confirmed L/C at sight.Question: What's your delivery time?
Answer: Our normal delivery time is 15 - 25 working days.
But if your order is some special engine and alternator, then the delivery time is longer.
Question: What's the MOQ?
Answer: 1 Set

---
