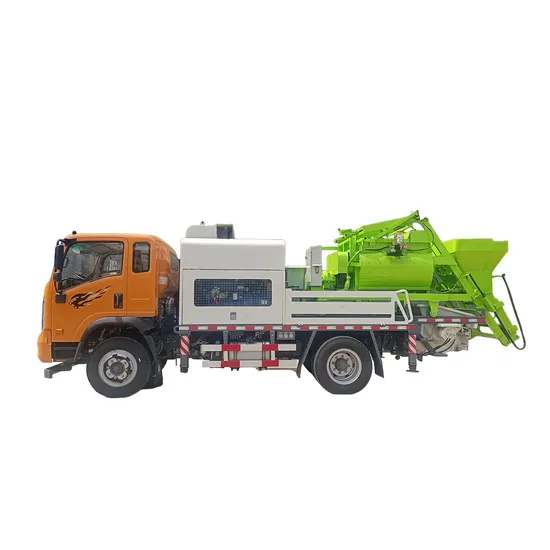

High Quality Low Price Concrete Truck Mounted Mixer Pump to Peru Chile Concrete Pump

Product Description

Truck Mounted Concrete Pump with Mixer Professional manufacturer in Changsha, Hunan
20 years+ Production & Export Experience
Solid technical foundation and independent innovation to ensure product quality
Well-know brand components from Germany, Italy, Japan, France etc. strive for the best combination of mechanical parts
Technical parameters

Item	Unit	Spec.
system pressure	Mpa	32
pumping pressure	Mpa	10
theory pumping capacity	m³	50
theory mixing capacity	m³	18-25
motor	Kw	45
working electric voltage	V	380
Max. theory pumping vertical/horizontal distance	m	120/350
Hopper capacity	m³	0.7
concrete slump	mm	140-230
Max.aggregate size	mm	40
Delivery pipe dia.	mm	125
Distribution valve type		S valve
Size (length x width x height)	mm	8500x2300x3300
Weight	KG	14000

Chassis, equipment, components etc. all can be further negotiated according to your requirements.


Package

Construction case
FAQ
1.Q:Are you factory or trading company?
A: We are factory in Changsha, Hunan.
2.Q: What is your main oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for structure parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: We provide video technical support, and we can send technicians to your country if necessary. We have local after service team in some areas.

---
