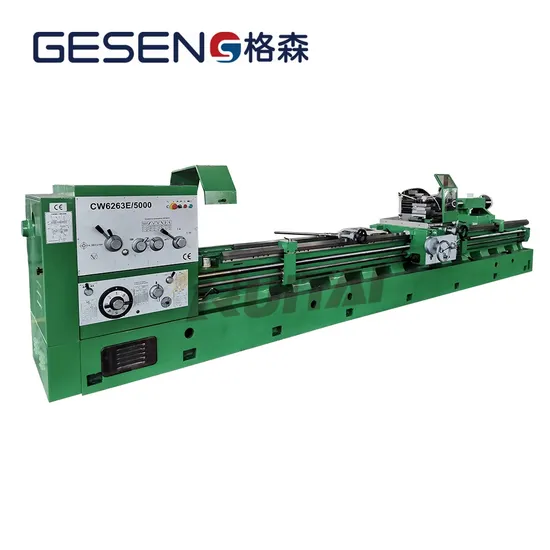

Cw6263e Conventional Lathe Machine Tool Universal Horizontal Metal Working Main Motor 11kw

US$15,000.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CW6263E
Type
Horizontal Lathe
Processing Accessory
Conventional Metal Machining
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Spindle Motor and Manual Feeding
Controlling Mode
Manual Control
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Hole
130mm
Spindle Taper
Metric 140#
Width of Bed
780mm
Carriage Travel
650mm * 280mm
Chuck
4 Jaws Chuck
Sleeve Diameter
160mm
Sleeve Taper
Metric80#
Sleeve Travel
300mm
Rapid Feed:Long/Cross
3400mm/Min,1700mm/Min
Main Motor
22kw
Coolant Motor
0.15kw
Rapid Feed Motor
1.5kw
Distance Between Centers
1.5m,2m,3m,4m,5m,6m,8m,10m,12m Optional
Metal Machining
Shaft Parts, Cylindrical and Disc Parts of Differe
Cutting Tools
HSS and Carbide Steel Cutters
Transport Package
in Wooden Case
Specification
Max. working weight 8000kg
Trademark
GESEN
Origin
China
HS Code
8458190000
Production Capacity
500sets/Year

Product Description

Product Description
CONVENTIONAL LATHE
The CWA series horizontal machine tools are universalconventionallathe, which are applicable to machining shaft parts, cylindrical and disc parts of different materials with HSS and carbide steel cutters.
The conventional lathe is capable of turning, external circle, end face, groove cutting, cutting, boring, turning and boring of inner cone, various threads and other processes.
The main shaft of the machine adopts a three-support structure, and the whole bed forms a box shape, so that the bed has a high rigidity.
The machine tool is equipped with a separate oil pump for forced lubrication. The slide plate, knife rest, bed saddle and tailstock can move quickly, making the machine tool have the characteristics of strong rigidity, high efficiency, safety and reliability, convenient operation and beautiful appearance. Detailed Photos
Product Parameters
ITEMS MODEL CW6163 CW6180 CW61100 CW61120
CW6263 CW6280 CW62100 CW62120
MACHINEING CAPACITY Max.swing over bed 630mm 800mm 1000mm 1200mm
Max.swing over gap -62 830mm 1000mm 1200mm 1400mm
Max.swing over cross slide 345mm 480mm 680mm 880mm
Distance between centers 850 1350 1850 28503850 4850 5850 7850 9850 11850 mm
Width of bed 600mm
HEAD STOCK Spindle hole φ105mm φ105mm/ φ130mm
Spindle taper hole φ120mm 1:20 φ120mm / φ140
1:20
spindle speeds 7,5-1000r/min 5.5-730r/min(18steps)
GFAR BOX-
THRFADS&FFFDS		 Metric threads mm 1-240mm (52)
Inch threads TPl 1-14 (26)
Moudle threads mm 0.5-120mm (53)
Diametral threads DP 1-28 (24)
Longitudinal feeds range 0.1-24.3mm/r
Cross feed rang 0.05-12.15mm/r
Rapid feed:long/cross 4000mm/min, 2000mm/min
TOOL-POST Tool section 32×32mm
CARRIAGE Cross slide trave 370mm 430mm
Compound rest travel 200mm 200(170)mm
TAILSTOCK Sleeve diameter φ100mm φ120mm
Sleeve taper Mohs6*
Sleeve trave 240mm
STEADY REST Steady res φ20-200mm
Follow rest φ20-135mm
MOTOR Main motor 11KW/15kw
Rapid feed motor 1.1KW

ITEMS MODEL CW6163E CW6180E CW61100E CW61120E
CW6263E CW6280E CW62100E CW62120E
CAPACITIES Max.swing over bed 630mm 800mm 1000mm 1200mm
Max swing over cross slide 350mm 485mm 685mm 800mm
Distance between centers 750,1250,1750,2750,3750 mm
Max.swing over gap -62 830mm 1000mm 1200mm 1400mm
Valid length of gap 230mm
Bed width 550mm
HEADSTOCK Spindle hole φ105mm φ105mm /φ130mm
Spindle nose C-11 or D-11
Spindle taper hole φ120mm
1:20		 φ120mm/φ140mm
1:20
Spindle speeds(Number) 14-750rpm (18 steps)
GEAR BOX-
THREADS &FEEDS		 Metric threads range(kinds) 1-240mm (54kinds)
Inch threads range (kinds) 28-1inch (36kinds)
Moudle threads range(kinds) 0.5-60DP (27kinds)
Diametral therads range(kinds) 30-1 t.p.i (27kinds)
Longtudinal feeds range (kinds) 0.048-24.3 mm/r(72kinds)
Cross feed range(kinds) 0.024-12.15 mm/r(72kinds)
Rapid feed:Long./Cross 4/2 m/min
Leadscrew size:Diameter/Pitch T48mm/12mm or T55mm/12mm (≥5m)
CARRIAGE
Cross slide travel 350mm 420mm 520mm 620mm
Compound rest travel 200mm
Size of tool shank 32×32mm
TAILSTOCK Spindle diameter φ100mm φ120mm
Spindle taper MORES 6"
Spindle travel 240mm
MOTOR Main drive moter 11kw
Coolant pump motor 0.09kw
Rapid feed motor 1.1kw
