Hlrc-4020 Monthly Deals 5-Axis Water Jet Stone Cutter Machine, CNC Cutting Machine, Water Jet Cutting Machine CNC Metal Cutter, Glass Cutting Machine

Product Description

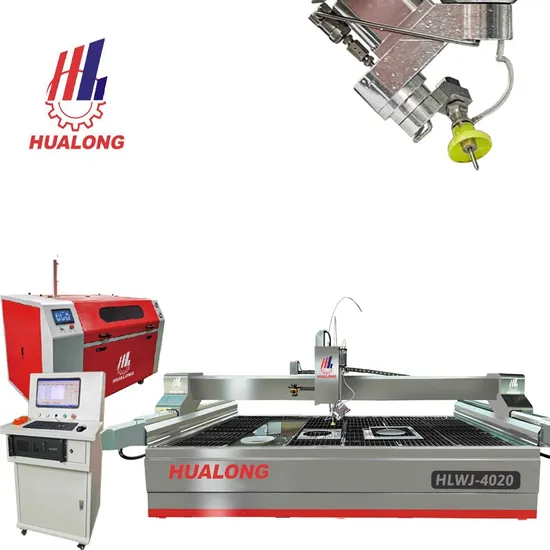

CNC Waterjet Cutting MachineHLWJ-4020, which using a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material, is an industrial tool capable for cutting almost any material while maintaining high precision.This 5 axis waterjet cutter can cut any angle within +60°, it solves the traditional problem of water cutting inclination, and achieves 2D/3D cutting easily. The line cutting accuracy is +0.1mm, angle cutting accuracy is +0.1°. Our machine is applied to cut bevel surface, straight surface, conical surface, circular surface, rotating surface, groove, chamfer, and arbitrary surface.It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials.Main Features
1) Processable any curve cutting, flexible, convenient and versatile.2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.Tension-free processed parts due to minimal cutting force.3) Narrow kerf - The amount of material removed by the water jet stream is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness. 4) Cut Recovery - Pick back up where Jet stopped.5) Programmable Z axis height. Z axis retracts between pierces.6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.8) Driver system sealed against water,dust and grit. Long working life.Application:* Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics.* Glass industry , such as bathroom glass, shop window glass, automotive glass and appliance glass.* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, Cutting of metal parts.* Gasket Cutting* Foam Product Cutting.

TECHNICAL DATA
Model No.		HLRC-3020	HLRC-4020
Working area	cm	330*210	410*210
X-axis stroke	mm	3200	4000
Y-axis stroke	mm	2000	2000
Z-axis stroke	mm	80-130	80-130
Max. angle of C axis rotation	°	+/- 360	+/- 360
Max. anglel of A axis swing	°	+/- 60	+/- 60
Cutting accuracy	mm	+/- 0.1	+/- 0.1
Repeatablbe accuracy	mm	+/- 0.05	+/- 0.05
Traverse speed	mm/min	5000/15000	5000/15000
Main motor power	kw	37	37
Dimensions (L x W x H)	cm	443x278x220	540x283x210

Different sizes and configuration are customizable

Driving SystemAdopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head. Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.	Auto Abrasive Delivery SystemTransfers the abrasive to the abrasive regulator.Air valve to prevent jams and breakagesAuto control with CNC auxiliary functionSelf sealingSlightly adjust the flow.	Oil Cooled ChillerA less mantained, more stable and better working chiller.It cool and guarantee the hydraulic system can be used in a stablecircular manner at 42-45°C,while at 55-57°C if by water chiller.

Movable Operator StationThe station comes equipped with NcStudio V10 Waterjet cutting CNC system, 19" LCD, pump interface,keyboard and mouse.Compatible G code, PLT, DXF file generated by CAD/CAM software of UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw etc. Remote Control (optional)For operating the movement of 5 axises conviniently.Water Jet SoftwareBrand: WeihongOriginal: China
A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize perfect dynamic five-axis cutting,
easy to operate and to learn.Main MotorProduced by : Siemens
Original: China
Power: 37 kw
Efficiency: 92.7%
To generate motion energy throught electtical energy for high pressure pump IntensifierTo produce high pressure water continuously.
Main parts come from Ashcroft, USA.Stable performance and operationServo MotorBrand: WeihongOrigin: China
Nr of revolutions: 0-1500 rpm Drive X axis moving accuracy and reposefully.Laser SensorBrand: WeihongOriginal: China Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constantElec-magnet ValveBrand: HytekOrigin: Taiwan, ChinaIndicate and change advantageLinear Guide* Linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement. * The linear slides and rails, helical rack and pinions in all systems are protected with automatic greasing pump in order to prevent rust and to continue sensibility.
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
