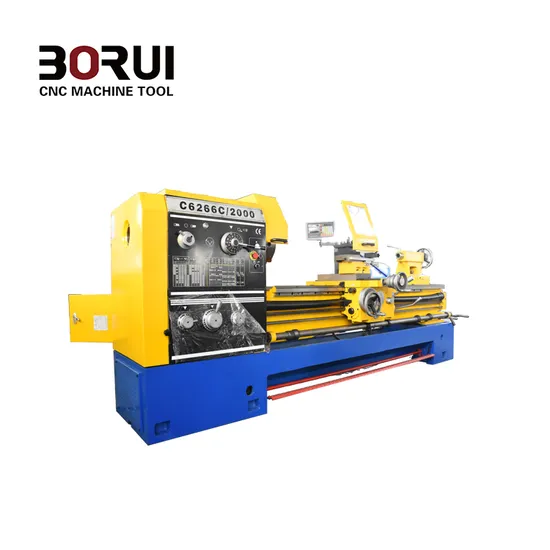

High Quality Heavy Duty Precision Metal Lathe Machine CS6250c CS6266c CS6280c (CJ6250YC CJ6266YC CJ6280YC)

Product Description

High quality heavy duty precision metal lathe machine CS6250C CS6266C CS6280C (CJ6250YC CJ6266YC CJ6280YC)
Product Application
The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.
Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
The main specification :

Model NO.	CS6250C	CS6266C	CS6280C
Max. swing over bed	φ500mm(20")	φ660mm(26")	φ800mm(31")
Max.swing over cariage	φ300mm(12")	φ420mm(17")	φ560mm(22")
Max.swing in gap	φ710mm(28")	φ870mm(34")	φ1010mm(40")
Max. length of workpice	1000/1500/2000/2500/3000/4000mm
Effective gap lengh	230mm
Bed width	405mm
Spindle bore	φ108mm
Spindle taper of bore	113(1.20)
Spindle number of speeds	12STEPS 16STEPS
Spindle range of speeds	36-1600rpm/13-1400RPM
Threads metric pitches	1-14mm/22
Threads imperial pitches	28-2TPI/26
Threads diametral pitdhes	50-4DP/24
Threads module pitches	0.5-7mm/18
Range of feeds longitudinal	0.063-2.52mm
Range of feeds cross	0.027-1.07mm
Extenal diameter of the tailstock quill	φ75mm
Max traverse of the tailstock quill	150
Quill taper	NO.5(morse)
Travel of compound rest	145mm
Max. cross slide travel	360mm
Max. size of tool shank(WxH)	25x25mm
Power of the main motor	7.5kw
Overall dimension(L xWxH)	(2700/3200/3700/4200/4700/5700)x1150x1800mm
Net weight	2850/3150/3400 /3800/4200/4700kg	3200/3500/4000/ 4250/4500/5000kg	3550/3650/4200/ 4470/4750/5300kg

Standard Accessories:
1. Centers;
2. Steady rest (750mm without this);
3. Follow rest (750mm without this);
4. Foot plate;
5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard
Optional Accessories: 1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
The main performance characteristics:
-Can perform internal and external turning, taper turning, end facing, and other rotary parts turning; -Threading Inch, Metric, Module and D.P.;
-Perform drilling, boring and groove broaching;
-Machine all kinds of flat stocks and those in irregular shapes;
-Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
-Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
-There are hand brake and foot brake for users to choose;
-These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
