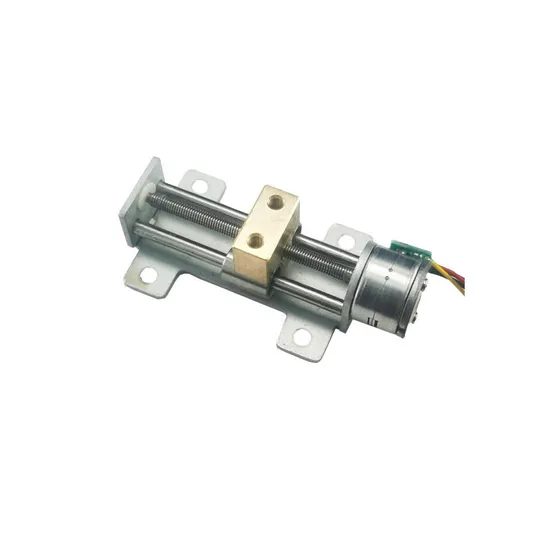

15mm 6V DC Minature Stepping Micro Stepper Motor

US$10.20-16.70 10 Pieces (MOQ)

Basic Info.

Model NO.
07-005-062
Number of Stator
Two-Phase
Excitation Mode
2-2 Phase Exciting
Function
Driving
Number of Poles
2
Operate Mode
Bi-Polar Drive
Type
Linear
Certification
ISO9001
Brand
Ccht
Transport Package
Carton
Specification
Φ 15mm
Trademark
CCHT
Origin
Sichan
HS Code
8501109990
Production Capacity
20000/Month

Product Description

Technical Parameter of Micro Stepper Motor
No. Model No. OD
(mm)		 Step Angle
(°)		 Existation
Method		 Drive
Mode		 Voltage
(V DC)		 Current
/Phase
(mA)		 Resistance
/Phase
(Ω)		 Output Torque
(gf.cm)		 Insolution resistance
(Ω)		 Noise
(dB)		 Working
environment temperature(ºC)
1 01-005-001 Φ8 18 2-2 Phase Exciting BI-Polar Drive 5.0 / 30 100.00 100V AC, 1S ≤50 -40~+80
2 07-005-001 Φ6 18 2-2 Phase Exciting BI-Polar Drive 3.3 300 40 20.00 100V AC, 1S ≤50 -20~+80
3 07-005-002 Φ6 18 2-2 Phase Exciting BI-Polar Drive 3.3 165 20 / 100V AC, 1S ≤50 -20~+80
4 07-005-011 Φ6 18 2-2 Phase Exciting BI-Polar Drive 3.3 110 30 0.06 100V AC, 1S ≤50 -20~+80
5 07-005-016 Φ6 18 2-2 Phase Exciting BI-Polar Drive 3.3 300 14 0.20 100V AC, 1S ≤50 -20~+80
6 07-005-027 Φ8 18 2-2 Phase Exciting BI-Polar Drive 3.3 160 20 80.00 100V AC, 1S ≤50 -20~+80
7 07-005-031 Φ8 18 2-2 Phase Exciting BI-Polar Drive 3.3 250 20 0.15 300V AC, 1S ≤50 -20~+80
8 07-005-032 Φ8 18 2-2 Phase Exciting BI-Polar Drive 3.3 165 20 1.50 100V AC, 1S ≤50 -20~+80
9 07-005-033 Φ8 18 2-2 Phase Exciting BI-Polar Drive 3.3 160 20 0.25 100V AC, 1S ≤50 -20~+80
10 07-005-034 Φ8 18 2-2 Phase Exciting BI-Polar Drive 5.0 100 50 0.23 100V AC, 1S ≤50 -20~+80
11 07-005-036 Φ8 18 2-2 Phase Exciting BI-Polar Drive 5.0 450 14 0.60 300V AC, 1S ≤50 -20~+80
12 07-005-041 Φ10 18 2-2 Phase Exciting BI-Polar Drive 5.0 90 55 0.30 300V AC, 1S ≤50 -20~+80
13 07-005-042 Φ10 18 2-2 Phase Exciting BI-Polar Drive 5.0 90 55 0.30 300V AC, 1S ≤50 -20~+80
14 07-005-043 Φ10 18 2-2 Phase Exciting BI-Polar Drive 5.0 160 31 5.00 100V AC, 1S ≤50 -20~+80
15 07-005-044 Φ10 0.36 2-2 Phase Exciting BI-Polar Drive 5.0 160 31 7.00 100V AC, 1S ≤50 -20~+80
16 07-005-060 Φ15 18 2-2 Phase Exciting BI-Polar Drive 12.0 400 31 180.00 100V AC, 1S ≤50 -20~+80
17 07-005-061 Φ15 18 2-2 Phase Exciting BI-Polar Drive 6.0 300 15 200.00 100V AC, 1S ≤50 -20~+80
18 07-005-062 Φ15 18 2-2 Phase Exciting BI-Polar Drive 6.0 300 15 200.00 100V AC, 1S ≤50 -20~+80
19 07-005-079 Φ15 18 2-2 Phase Exciting BI-Polar Drive 12.0 760 31 720.00 100V AC, 1S ≤50 -20~+80
20 07-005-081 Φ20 18 2-2 Phase Exciting BI-Polar Drive 12.0 300 40 30.00 100V AC, 1S ≤50 -20~+80
