| US$550.00-1,599.00 | 1 Piece (MOQ) |
| Performance | |||

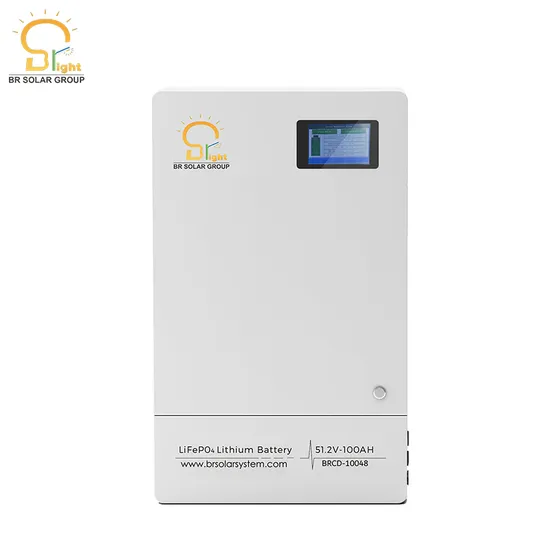

| Battery Model | BRCD8-10024 | BRCD16-10048 | BRCD16-20048 |
| Capacity | 25.6V100AH (100A) | 51.2V100AH (100A) | 51.2V200AH (150A) |
| Battery Total Energy | 2.5kwh | 5kwh | 10kwh |
| Rated Energy | 2.5kw | 5.1kw | 6.5kw |
| Peak Energy | 3kw | 6kw | 8kw |
| Rated Voltage(DC) | 25.6V | 51.2V | 51.2V |
| Allowable BMS Load Current | 100A | 100A | 150A |
| Battery Voltage Range(DC) | 22.4V~29.2V | 44.8V~58.4V | 44.8V~58.4V |
| Specifics | |||
| Dimension(L x W x H) | 370*160*400mm | 370*160*600mm | 500*160*850mm |
| Weight( Accessories Included) | ~24Kg | ~45Kg | ~102Kg |
| Installation | wall-mounted or floor-mounted | ||
| Working Temperature | -20ºC~ + 58ºC | ||
| Maximum Working Altitude | 4000 m(≥2000m derating) | ||
| Installation Environment | Indoor scenario | ||
| Working Relative Humidity | 5%~95% | ||
| Heat Dissipation | natural convection | ||
| Protection Grade | IP 40 | ||
| Cell | LiFePO4 | ||
| Expansibility | A max of 16 modules can be used in parallel | ||
| Matching Inverter | Most current mainstream inverters(lithium) | ||
