Basic Info.
Certification
3c, ISO9000-14000
Cutter Kind
Swing Straight Metal Blade
Mowing Requirements
Ground Type
Usage
Soccer Field, Rugby Field
Power Source
Petrol / Gas
Specification
330*300*250mm
Production Capacity
5000PCS/Month
Product Description

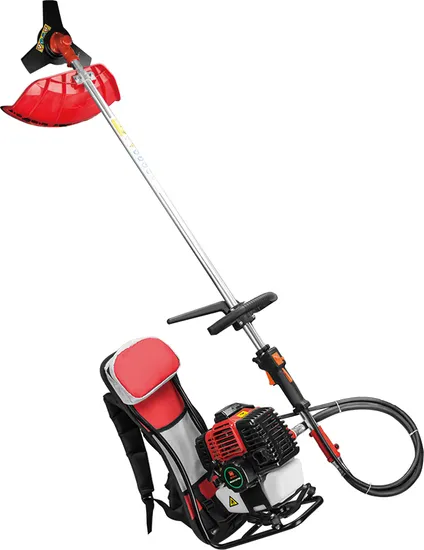

Lawn Mower
Model: CG-430B
Type of handle: Double handle
Driving model: Automatism centrifugal Clutch
Type: 1-cylinder, 2-stroke, air-cooled
Rotating direct of blade: Counter-clockwise
Speed reducing ratio: 1.25
Blade: Rhombus 3teeth, 4teeth, 8teeth, 30teeth, 40teeth, 80teeth, nylon cotting head
Engine: 1E40F-5A
Displacement: 42.7CC
Max. Output power: 0.75/6500(kw/r/min)
Fuel oil: Gasoline and two-cycle oil: 25: 1
Carburetor: Pump oil type
Max. Ful consumption: <=610g/kw/h
Start system: Self-return hand-operated start
Oil tank capacity: 1.0L
Diameter of Aluminium pipe(mm)26
Working Form: SHOULDER
Noise: <=104dB(A)
N. W/G. W: 9.4kg/11.1kg
Engine case size: 330*300*250mm
Shaft case size: 1660mmx110mm x 110mm
Certificate: CE, ISO9000-14000
| Model | CG-430B | CG-430B-1 | CG-411B | CG-328B | T200 |
| Engine | 1E40F-5A | 1E40F-5B | 1E40F-6 | 1E36F | 1E39F |
| Displacement(cc) | 42.7 | 42.7 | 40.2 | 30.5 | 39 |
| Standard power(kw/r/min) | 1.25/7000 | 1.25/7000 | 1.45/7000 | 0.81/6500 | 1.5/7000 |
| Form of carburetor | diamphragm | diamphragm | floattype | floattype | floattype |
| Mixed Fuel Ratio | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 |
| Tank capacity(L) | 1.2 | 1.2 | 0.85 | 1.0 | 1.0 |
| Diameter of aluminum pipe(mm) | 26 | 26 | 26 | 26 | 26 |
| Working form | Shoulder | Shoulder | Shoulder | Shoulder | Shoulder |
| Weight(kg) | 7.5 | 7.5 | 7.7 | 7.8 | 8.5 |
| Engine Dimension(mm) | 330*300*250 | 405*300*280 | 330*300*250 | 330*300*250 | 330*300*250 |
| Working pole Dimension | 1660*110*110 | 1660*110*110 | 1660*110*110 | 1660*110*110 | 1660*110*110 |
>>
