High Output Film Blowing Machine with Rotary Die& Double Winder

Product Description

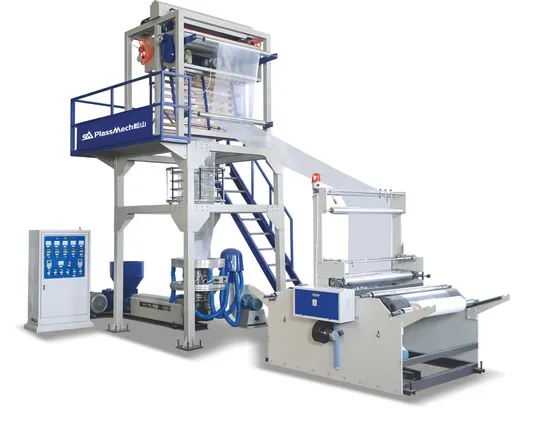

The Machine(Rotary die head double winder film blowing machine)
The Film blowing machine is used to blow the molten LDPE, HDPE and LLDPE into bubble film. Its products are widely used to pack fruit, food, clothes, textile, daily necessities and other industrial products.
MAIN TECHNICAL VARIABLES
-----------------------------------------------------------------------------

Model		SJ-55	SJ-65	SJ-75
Features	Raw Material	HDPE, LDPE, LLDPE; Virgin and Recycled
	Film Width	800mm	1200mm	1500mm
	Average Output	45Kgs	65Kgs	85Kgs
	Film Thickness	0.008mm-0.15mm
	Dimension	5×3.5×4.5M	6×4×5.5M	7×5×7M
Extrusion Unit	Screw Diameter/LD ratio	55mm 30:1	65mm 30:1	75mm 32:1
	Motor	15KW	22KW	37KW
	Gearbox	146	173	200
	Die Head Type	Rotary Die Head
	Die Size	80/160mm	160/260mm	400mm
Film Taking-up Tower	Upper Tower Type	Up and down; embossing roller and gusseting
	Roller Length	900mm	1400mm	1800mm
	Roller Working Way	Opened and Tightened By Air Cylinders
Winding Station	Winder Type	Double winding station fraction type
	Rollers	900mm	1400mm	1700mm
	Max. Winding Diameter	650mm
Control Panel	Temperature control	5 zone
	Electronics	Top China Brand

MORE DETAILED PICTURES
-----------------------------------------------------------------------------

WORKSHOP& WAREHOUSE
-----------------------------------------------------------------------------
Zhejiang Songshan Machinery Co., Ltd. Was founded in 1995, located in beautiful scenery city-Ruian near east sea. With mature technologies and abundant manufacturing experiences, Songshan is a qualified plastic machinery manufacturer that specializes in making all kinds of sealing & cutting machine, all kinds of blown film extruder and all kinds of plastic recycling machine. It is integrated manufacture, sales and after sales.


DELIVERY&PACKING
-----------------------------------------------------------------------------

ZHEGE

SALES AND SERVICE NETWORK
-----------------------------------------------------------------------------
Based on Zhejiang, we face the whole country, and approach to the world.

High-quality Machines
Zhejiang Songshan Machinery is studying and adopting international standards and industry-leading technology to create high-quality film blowing machine and high-speed bag making machine, and flying high around the world with "integrity, responsibility, innovation and dedication".
FAQ
-----------------------------------------------------------------------------
1.Are You a Factory or Trading Company?
We are a factory, with 25 years experience on machines, our products sell very well all over the world.
2.Where is your factory located? How can I visit there?
Our factory is located in Ruian City, Zhejing Province, China. The nearest airport is Wenzhou airport. It's about 40 minutes by plane from
Shanghai (5 hours by train). All our clients, from home or abroad, are warmly welcomed to visit us.

---
