"15 years of color steel coil production experience! Because professional, trustworthy!"
We are the leading prepainted color steel coil manufacturer and distributor in China which have been engaging in the field produced for 15 years with 12 years export experience..
For color steel, we have more than 10 production lines, thickness from 0.11-2mm. For PPGI/PPGL,we can do all RAL color and different flower design. For the coating,we can do one side and double side. We can also slit the coil into strip. We have the film machine,can cover the protective film on surface. We are very capable to custom make for you.
OEM/ODM order are accepted. Any logo printing or design are able to cutomized.

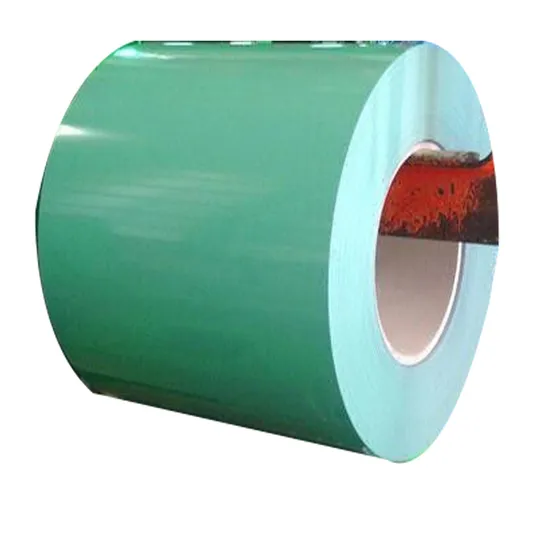

| Name | Prepainted Steel Coil |
Type of
substrate | Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled
steel, Aluminum |
| Thickness | 0.125-2mm |
| Tolerance | Thickness: ± 0.01mm |
| Width | 600-1250mm ( Normal:1250, 1200,1000,914 mm) |
| Top Paint | 10-25 micron(Normal:10-12mic) |
| Back paint | 5-12 micron(Normal:5-7mic) |
| Coating | Zn coating | AZ coating |
| 30-400gsm | 30-400gsm |
| Coil weight | 3-9 tons or as your requirement. |
| Coil ID | 508/610 mm |
| Grade | Galvanized | Galvalume |
SGCC/DX51D+Z, DX52D+Z,
SGCD/DX53D+Z,SGCE/DX54D+Z,
SGCH....... | DX51D+AZ, DX52D+AZ, DX53D+AZ,
DX54D+AZ,SGLCC,SGLCD,SGLC4
40,SGLHC........ |
| Coating type | Top paint: PE, SMP, HDP, PVDF, PU |
Functions: Decorative, Machinability, Weather resistance, Scrath
resistance, Stain resistance, Chemical resistance, Adhesion resistance |
| Primer paint: Polyurethane, Epoxy, PE |
Functions:Machinability, Corrosive resistance, Adhesion, Scrath
resistance |
| Back paint: Epoxy, Modified polyester |
| Functions: Scrath resistance, Bending adhesion, Corrosive resistance |
Type of
coating
process | Front: Doulbe coated & double drying |
| Back: Double coated & double drying, single coated & double drying |
| Double coated & double drying is used for corrugated sheet |
| Double coated & single drying is for sandwich panel |
| Packing | Standard export package .Plastic film in the first layer,second layer is Kraft
paper. Third layer is galvanized sheet. |
| Application | Building industry ,structural use, roofing, commercial use ,household
appliance, industry facilities, office buildings |
Production Process Test
Sample:Samples can be offered with Samples` charges and courier fee by you . But Samples` charges will be return to you after you place an order . Production Line:We having own three factories with more than 10 production lines . Many styles for you choice. OEM/ODM and logo stamp:OEM/ODM order are accepted . Any logo printing or design are free of charges. Transport:We have own international Logistics company . Is Class-One agent of MSC/MSK/APL/CMA/COSCO/OOCL/MOL . Can supple the best transport plan and charges for you .Also ensure delivery the goods within short time . During Sale Service: Quality Control: IQC IPQC FQC Material Inspection, Drawing and Samples' Inspection, Correction of Machine and Equipment, Trial production, Finished Production Testing, The Third inspect department
2. Transportation safety guarantee:Our logistics having good-tracked system. Will inform you the goods transport status message at any time , until you pick up the goods.
After-Sale Service: We are glad to supply the better suggestion of the price and products . Including the goods` stockpile and application . Will supply the latest market price information for you at any time. Welcome to visit our company . Insure you will have a good time in China.
