Basic Info.
Type
Surface Grinding Machine
Controlling Mode
PLC Control
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Certification
GS, CE, RoHS, ISO 9001
Name
Hydraulic Surface Grinding Machine
Magnetic Chuck Table Size
300X600mm
Max. Loading Capacity
270kg
Grinding Type
Surface Grinder
Chuck
Magnetic Chuck Table
Longitudinal Moving
Hydraulic
Vertical Travel
Servo Motor
Control
PLC Automatic Control Grinding
Grinding Wheel Size
350X40X127mm
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
235.00cm * 220.00cm * 211.00cm
Package Gross Weight
2800.000kg
Product Description

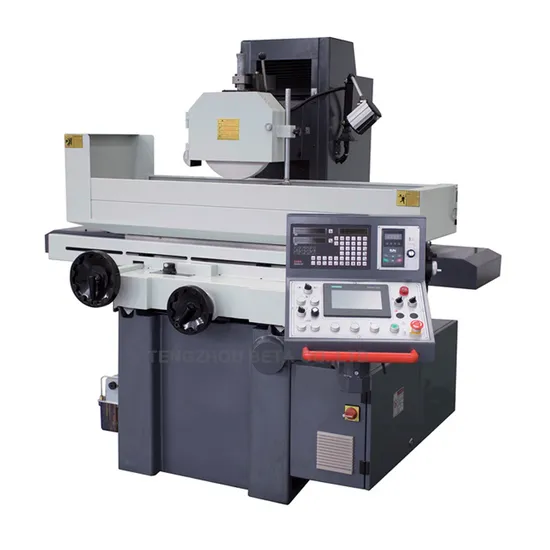

New 3063AHD Horizontal Automatic PLC Surface Grinding Machine Price
Standard accessories:
PLC automatic grinding controller ,
Standard grinding wheel ,
Grinding wheel flange, Wheel extractor,
Working lamp, Balancing arbor,
Electric magnetic plate 300x600mm,
Wheel dresser stand, coolant tank,
Leveling wedge and bolt, Tools & Tool box
Optional accessories:
Dust exhaust apparatus
Balance stand
parallel dresser
2-axis digital readout
closed guard of worktable
closed guard of oil tank
magnetic separator
magnetic separator & paper filter
Luxury splash board
Closed wooden case packaging
| Model | Unit | SGA3063AH | SGA3063AHR | SGA3063AHD |
| Table size | mm | 305*635 | 305*635 | 305*635 |
| Magnetic chuck size | mm | 300*600 | 300*600 | 300*600 |
| Max.distance from spindle center to table | mm | 580 | 580 | 580 |
| Table cross travel | mm | 340 | 340 | 340 |
| Table longitudinal travel | mm | 765 | 765 | 765 |
| Max.loading capacity (include chuck) | kg | 270 | 270 | 270 |
| Speed of table longitudinal move | m/min | 5~25 | 5~25 | 5~25 |
| Cross motion intermittent feed rate | mm/t | 0.1~8 | 0.1~8 | 0.1~8 |
| Cross motion rapid speed | mm/min | 990 | 990 | 990 |
| Cross motion feed of handwheel | mm/div | 0.02 | 0.02 | 0.02 |
| vertical motion auto down feed rate | mm/t | - | - | 0.005~0.5 |
| vertical motion rapid down speed | mm/min | - | 650 | 480 |
| vertical motion feed of handwheel | mm/div | 0.005 | 0.005 | 0.005 |
| spindle rotating speed | r/min | 1450 (50HZ) / 1750 (60HZ) |
| grind wheel size | mm | 350*40*127 |
| spindle motor power | kw | 4 |
| floor space (L*W*H) | mm | 2900*2200*1900 |
| Gross weight | kg | 2800 |
| Packing size (L*W*H) | mm | 2350*2220*2210 |
>>
