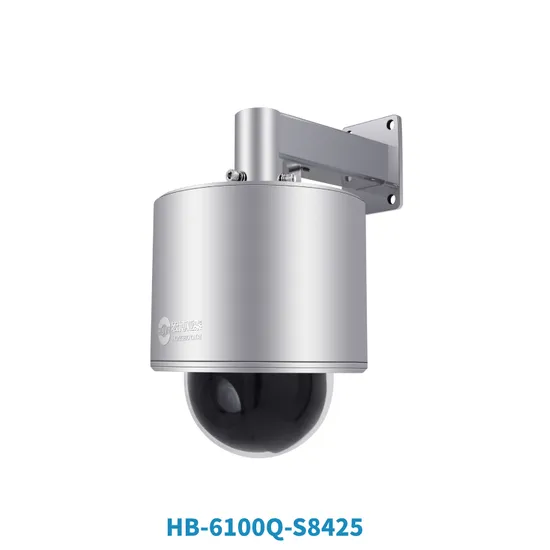

304 Stainless Steel Industrial Explosion-Proof High Speed Dome Camera for Oil Gas

Product Description

Introducing the Explosion-Proof High-Definition Smart Dome Camera: The Ultimate in Industrial Surveillance Technology
Model: HB-6 - Engineered for Excellence
Resolution: 100 Megapixels - Crystal Clear Imagery
Product Code: Q-S6533 - Cutting-Edge Security Solution Functional Characteristics · Double explosion-proof certification with explosive protection mark: Ex db IIC T6 Gb / Ex tb IIIC T80ºC Db, ensuring unmatched safety in hazardous environments.
· Utilizes a high-performance 5 million pixel 1/2.8" CMOS image sensor for exceptional image clarity and detail.
· Boasts an impressive 33x optical zoom with a focal length range of 4.5mm to 148.5mm, capturing details near and far.
· Features starlight-level low-light monitoring at 0.003lux (F1.5, 50IRE, color) and 0.001lux (F1.5, 50IRE, black and white) for superior nighttime visibility.
· Advanced facial detection and capture capabilities in designated zones, with the ability to count faces for enhanced entry and exit management.
· Sophisticated cross-border detection and area intrusion recognition, distinguishing between motor vehicles, non-motor vehicles, and pedestrians to suit complex deployment scenarios.
· Wide dynamic range of 120dB, perfectly suited to monitor high-contrast environments.
· Supports high-resolution video at 2592x1944 @ 25fps, ensuring smooth and clear moving images.
· Equipped with H.265 encoding, 3D noise reduction, fog penetration, strong light suppression, and area enhancement capabilities for optimal performance.
· Automatic aperture, electronic shutter, and ICR filter switching functions to adapt seamlessly to various monitoring environments.
· Supports 360° continuous horizontal rotation and vertical rotation from 0° to 90° for comprehensive surveillance coverage.
· Horizontal rotation speed ranges from 0.1° to 180°/s, while vertical rotation speed ranges from 0.1° to 120°/s, ensuring rapid and precise movement.
· Includes 255 preset points, 4 cruise preset positions, 1 track scanning mode, and 1 line scanning mode between two points for customized monitoring routes.
· Constructed with aviation-grade high-strength polycarbonate explosion-proof transparent ball cover, featuring anti-fog, anti-reflection treatment, and 96% light transmittance.
· Crafted from durable 304 stainless steel, ideal for use in highly corrosive environments such as chemical industries, and resistant to acid and alkali.
Use Environment This robust camera is ideal for environments laden with combustible gases of Class IIA, IIB, and IIC, specifically in Zone 1 and Zone 2 with ignition temperature groups ranging from T1 to T6.It is superbly engineered for locations where combustible gases or vapors blend to form explosive mixtures with the air.
Additionally, it is designed for areas 21 and 22, sporting ignition temperature groups from T1 to T6, effectively covering places with combustible dust mixtures.Perfect for industries like petroleum, chemical, mining, pharmaceuticals, oil depots, shipping, drilling platforms, gas stations, fireworks production, grain processing, and storage, this camera is your go-to solution for high-risk environments.
Technical Parameters

Product Name	Explosion-proof High-definition Smart Dome Camera
Explosion-proof sign	Ex db IIC T6 Gb/Ex tb IIIC T80ºC Db
Protection level	IP68
Image Sensor	1/2.8"inch line-by-line scan CMOS
Effective Pixels	5MP
Focal length/zoom	Electric zoom, 4.5mm-148.5mm,33x optical zoom
Aperture	F1.5(W)~F4.0(T)
Shutter	Auto/manual,1~1/100000s
Minimum illumination	0.003lux (F1.5, 50IRE, color), 0.001lux (F1.5, 50IRE, black and white)
Day and night switching mode	Automatic IR filter switching
Signal-to-noise ratio	>56dB
Wide dynamic range	120dB
3D noise reduction	Support
Penetrating fog	Adaptive fog penetration
Encoding protocol	H.265,H.264,MJPEG
Coding format	2592*1944@25,2592*1944@20,2688*1520@30,2688*1520@25,2560*1440@30,2560*1440@25,1920*1080@30,1920*1080@25
Main stream	2592*1944,2688*1520,2560*1440,1920*1080,1280*720,720*576(D1),640*360
Auxiliary code stream	1920*1080,1280*720,720*576(D1),640*360
Third stream	720*576(D1),640*360,704*288(2CIF),352*288(CIF)
Video bit rate	128Kbps~16Mbps
Audio encoding format	G.711u,G.711A,AAC-LC
Audio sample rate	G.711u,G.711A:8KHz;AAC-LC:8KHz,16KHz,48KHz
Perimeter deployment	Cross-border detection, area intrusion, entering area, leaving area; Supports classification detection, capture and deployment of motor vehicles, non-motor vehicles and pedestrians
Ordinary events	Motion detection, occlusion detection, sound detection, alarm input, alarm output
Network protocol	L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,DNS,DDNS, NTP,FTP,UPnP,HTTP,SNMP,SIP
Compatibility	ONVIF Profile G, Profile T, Profile S,GB/T28181
Front-end storage	Micro SD,up to 256GB
Horizontal and vertical range	360° continuous rotation horizontally, 0-90° vertically
Spinning speed	Horizontal rotation speed: 0.1-200°/s, vertical rotation speed: 0.1-120°/s
Number of preset points	255
Cruise scan	4 channels of preset position cruising, one channel of track scanning, and one channel of line scanning between two points
Power off memory	Support
Network Interface	Built-in RJ45 network port, supports 10M/100M network data
Alarm interface	1 alarm input, 1 alarm output (optional)
Audio port	1 audio input, 1 audio output (optional)
Temperature range	-40ºC~+60ºC
Power supply	AC85V ~ 260V/DC12V 3A (optional)
Product material	304 stainless steel material
Cable entry hole specifications	1 pieces of G3/4" cable entry
Installation method	A variety of installation methods are available to choose according to the application environment
Product weight	≤10kg

Product Size
Company Profile Beijing Hongbo Yatai Electrical Equipment Co., Ltd was established in 2011, focusing on the Industrial Explosion-proof Monitoring Equipment and Providing Solutions. It is a high-tech enterprise integrating R&D, production, sales and service with more than 200 employees.
The company covers an area of 4000 square meters, with a factory area of approximately 15000 square meters, including 1 R&D center including two R&D centers and two production bases, with independent mechanical and electrical design capabilities, and has a complete electrical test center and mechanical design test center. The company always adheres to independent innovation and has completely independent intellectual property rights for product technology.
Our company takes video as the core, and serves the energy industry with IoT perception, artificial intelligence, and big data technology, leading the new future of smart energy. Based on the production safety management needs of the energy industry, in line with the harsh and dangerous environment of the industry, combined with video high-definition and AI analysis capabilities, it realizes the full-scene monitoring, standardized management, and intelligent early warning of the production process of "people, objects, environment, and management", reducing the occurrence of production accidents, helping enterprises to upgrade digitally, protect safety, and ensure production. The products are widely used in special fields such as petrochemicals, natural gas, coal mines, oceans, and aerospace. It has successfully participated in the construction of many large-scale projects and gained a good brand reputation. Exhibition FAQ Q1: How can we guarantee quality?
We ensure that a pre-production sample is always crafted and approved before commencing mass production.
A thorough final inspection is conducted before every shipment to ensure top-notch quality.
Q2: What can you buy from us?
Our product range includes: Explosion-proof camera, Explosion-proof electric yuntai, Explosion-proof camera cover, Explosion-proof control box, and various Explosion-proof fittings.
Q3: Why should you buy from us, and not other suppliers?
1. Factory Direct Prices - Offering unbeatable value for money.
2. Superior Quality - Committed to delivering top-tier products.
3. Swift Shipping - Rapid dispatch within a short timeframe.
4. Customization Support - Tailored solutions to meet your unique needs.
5. Vast Design Options - Choose from over 500 innovative designs.
6. Convenient Factory Visits - Easily explore and assess our facilities.
7. Comprehensive Certifications - Verified and trustworthy.
8. 7-Day Money-Back Guarantee - Shop with confidence and peace of mind.
9. Multiple Payment Methods - Supporting both online and offline transactions.
Q4: What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, and Express Delivery.
Accepted Payment Currencies: USD, CNY.
Accepted Payment Types: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union.
Languages Spoken: English, Chinese, Spanish, Japanese

---
