TM-S6C 6 color multi color Pad printing machine for a variety of printed materials

Product Details

Product Description

Product Description

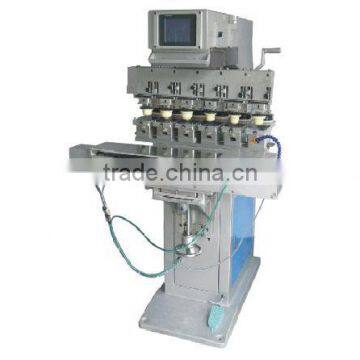

TM-S6C 6 color multi color tempo printing machine
This tempo printing machine is one of our best sellers,and is widely used, here are some informations of this tempo printing machine

Model	TM-S6C
Plate size	100*200mm
Worktable largest size	70*100mm
Max printing diameter	Φ80mm
Max printing speed	1000pc/hr
Air consumption	104litre/min (6bar)
Power	110/220V 60/50Hz 50W
Dimensions	1200*950*1500mm (LxWxH)
Weight	270KG

Feature:
1, Auto four digit counter built-in
2, the body with high quality aluminum alloy frame structure, surface temperature paint, light weight, solid body, beautiful and practical
3, oil ink roller assembly and disassembly, and easy to clean
4, independently adjustable plastic head from up to down; Printing speed adjustable to meet with different needs
5, automatic balanced squeegee, scraping the oil neat
6, each of the ink disk blocks can be X, Y, angle independent tuning, chromatic accurate, and improve efficiency
7, "Inking twice, printing once" to get better ink covering.
Application:
It is applying for a variety of printed materials: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface arc printing products, such as cell phone button, golf ball, toys, pens, mouse, electronic products, and handicrafts and so on.

---
