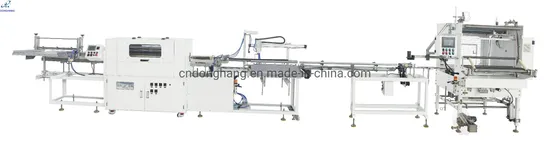

Auto. Plastic Cup Packing Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.

DHJBJ-120-4 and DH-650

Making Method of Parison

Feeding Cup,Curling,Completed Cupand Stacking

Automation

Automatic

Computerized

Certification

Power

380V/50Hz

Capacity

10-25PCS/Min

Air Pressure

0.6MPa

Size

5200*1100*1300mm

Speed

600-900PCS/Minute

Transport Package

Wooden Packaged or Stretch Film Packaged

Specification

CE, SGS

Trademark

DONGHANG

Origin

China

HS Code

84774090

Production Capacity

50 Sets/Month

Product Description

Product Description
The machine is suitable for sheet of PVC, PS, PET, PP etc, to make curling the mouth cup and pack the cups.
CHARACTERISTICS:
The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking.

Max. Speed of Curling	600-900pcs
Max. Dia. Of Curling	50-120mm
Main Motor	1.5Kw
Feeding Motor	0.09Kw
Heating Power	10Kw
Overall Size	5200×1100×1300mm
Power	380V/50HZ
Weight	0.9T
Air Pressure	0.6MPa

AUTO.PLASTIC CUP PACKING MACHINE
Model:DH-650 Technical Parameter

Capacity	10-25pcs
Dia of Curling	40-95mm
Packing length	520-650mm
Packing Material	HDPE,LDPE,PP,POF
Thickness of Packing Film	15-40um
Total Power	4.5kw
Air Source	0.6Mpa
Weight	About 700kg
