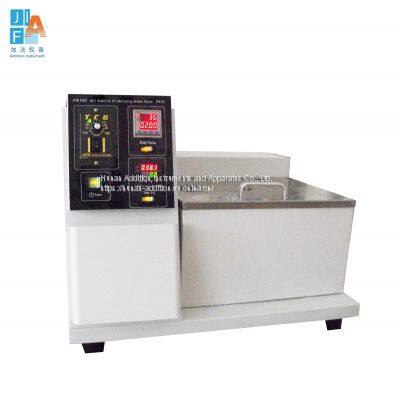

Lubricating Grease Roll Stability Tester ASTM D1831
Product model: JF0122
Instrument introduction
When operating the instrument, use a certain amount of samples to measure the working penetration of the grease before and after the test after working on the drum testing machine for 2 hours at room temperature. This instrument is suitable for measuring the consistency change of lubricating grease after working on a drum tester, and is used to judge the mechanical shear stability of lubricating grease.
Technical Parameter
1. Applicable standards: ASTM D1831, SH/T0122
2. Heating method: electric heating coil heating
3. Timing method: digital timer
4. Temperature control range: 21～38℃
5. Motor speed: 155～180r/min
6. Working unit: 2 units
7. Power of the whole machine: 1000W
8. Working power supply: AC220V/50HZ
Performance characteristics
1. Stainless steel roller Φ90×180mm 5kg;
2. The idler wheel has a positioning ring to control the normal operation of the drum;
3. A drive motor is installed below to keep the speed at 155~180r/min;
4. Belt drive drum;
5. Microcomputer thermostat, digital display, accuracy ±5℃ PT100 sensor;
6. Digital timer, record working time, with wind alarm;
7. Two rollers can be tested at the same time;
8. There is a thermometer hole on the cover of the instrument box, which can be used for temperature correction.

---
