High Precision Vertical X6432 Universal Swivel Head Milling Machine

Product Description

High Precision Vertical X6432 Universal Swivel Head Milling Machine

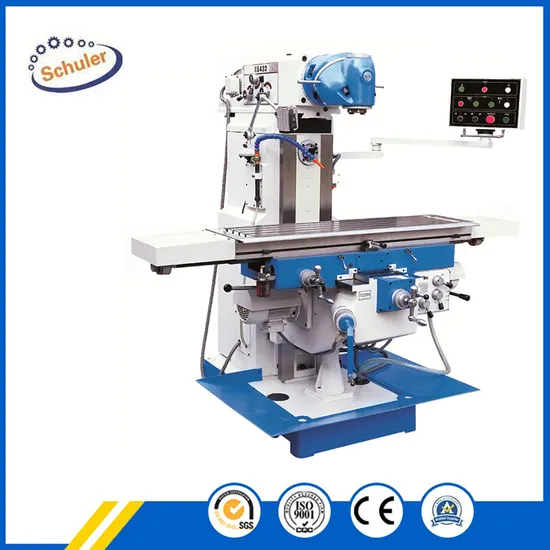

Product picture:
Universal Milling Machine Performance Characteristics:
1.Vertical and horizontal multifunctional milling
2.This milling machine with universal milling head which can swivel 360 degress,can be add slotting head.
3.Table swivel 45°, Multi-angle processing.
4.Gear drive , Auto feed on two axis,motorized lift on Z axis
5.Hardened on x, y, z axis,Rectangular guideway, stable, good rigidity.
6.Ball screws can be ordered instead of standard leads screws at special request.
Application:
1, Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.
2, Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3, Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Universal Milling Machine Technical parameters:

Specification	Unit	X6432
Table size	mm	1320x320
No. of T slot	no	3
T slot Size ( Width )	mm	14
Centre distance of T slot	mm	95
Max. load of Table	kg	300
swivel angle of table	degree	±35º
table Longitudinal travel(manual/auto)	mm	1000
table Cross travel (manual/auto)	mm	300
table Vertical travel(manual/auto)	mm	400
Spindle taper		ISO50
spindle speed /step -- Vertical	rpm	58-1800/
--Horizontal	rpm	60-1750/
swivel angle of swivel head	degree	360º
Distance from vertical spindle axis to column surface	mm	220-720
Distance from vertical spindle nose to table surface	mm	170-570
Distance from horizontal spindle axis to table surface	mm	0-400
Distance from horizontal spindle axis to ram bottom	mm	175
ram travel	mm	500
Longitudinal/cross feed	mm / min	22-420(X), 22-393(Y)
Vertical feed /step	mm/min	10-168(Z)
Longitudinal/cross rapid speed	mm / min	1290(X),1205(Y)
Rapid Traverse vertical	mm/min	513(Z)
main motor	kw	4
X/Y/Z) feed motor	kw	1.1
coolant motor	kw	90W
overall dimension	cm	207x202.5x202
Machine weight	kg	2480

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Universal Milling Machine Details:
Universal Milling Machine Package delivery:
Company and Certification Information:
Shandong Schuler CNC Machinery Co., Ltd. is a professional manufacturer of vertical machining center, high speed machining center, gantry machining center, vertical milling machine, universal milling machine, turret milling machine, lathe, CNC lathe, radial rocker drill, metal band sawing machine. enterprise. The company is located in Tengzhou City, Shandong Province, with convenient transportation and industrial intensive. The company integrates research, development, design, manufacturing, sales, installation and maintenance of CNC machine tools. With high-level production equipment technology and excellent, high-quality staff, providing high-quality product quality and service, the products sell well in domestic and foreign markets.
Zhongzheng is a person, and integrity is the foundation. It is the aim of Schuler people. It is consistent with the words and deeds, and it is always the commitment of Schuler people to our customers.
Schuler is willing to cooperate with every customer and peers to win the best for the development of CNC machinery industry. We will return the society with professional and perfect technical support services.
The company's main products include CNC machining center, industrial CNC milling machine and gantry machining center. , metal band sawing machine, CNC lathe, universal turret milling machine, ordinary milling machine, punching machine and other products, customers are welcome to contact us, we will provide you with quality products and satisfactory service.
