Basic Info.
Transmission System
Chain Drive
Certification
CE, ISO9001
Transport Package
Iron +Carton
Production Capacity
1000PCS/Year
Packaging & Delivery
Package Size
228.00cm * 129.00cm * 84.00cm
Package Gross Weight
250.000kg
Product Description
Product Description
Model name | specification |

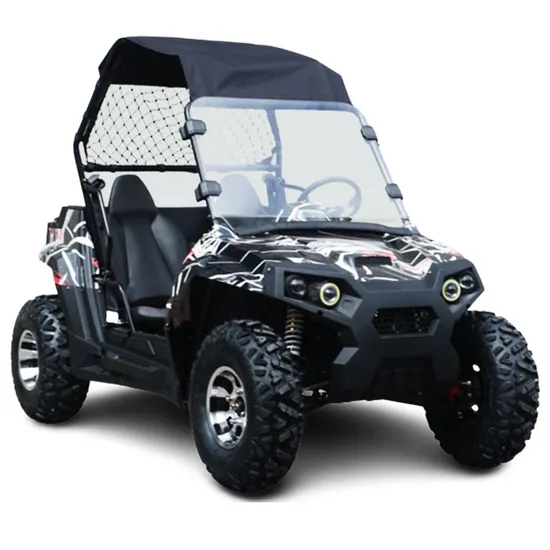

Name | SHGU-A |
Engine | Single cylinder,4 stroke,CVT |
Displacement | 200CC 300CC |
Compression ratio | 10.5.1 |
Max power | 10.5KW/7500RPM |
Max torque | 17.6NM/5500rpm |
Ignition | CDI |
Cooler model | Air cooler |
Start model | Electric start |
Vehicle Size | 2300x1300x900mm |
Spare tank size | 410mmX852mmX220mm |
Wheelbase | 1650mm |
Front Track | 1020mm |
Rear Track | 965mm |
Ground clearance | 152mm |
Seat height | 500mm |
Net Weight | 245kg |
Fuel tank capacity | 9.5L |
Transmission | Chain |
Brake | Foot brake,four disc brake |
Suspension | Oil shock damping |
Direction machine | Gearbox |
Speed | 65km/h |
Front tire | 21x7-10 |
Rear tire | 20x10-10 |
Max grade | 35 degrees |
Min operate temperature | -20 Degrees Celsius |
Max operate temperature | 40 Degrees Celsius |
Packing size | 2285mmx1290mm8600mm |
Container loading | 8Units/20Ft 18units/40HQ |
Detailed Photos Certifications FAQ Q1. What is your terms of packing?
A: Generally, we pack our goods inner iron frame+outer carton box. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
>>
