Plastic PVC PE Corrugated Bellow Pipe Production Making Machine

Product Description

pvc plastic pe bellow corrugated pipe production making machine
1. We not only provide machines but also offer technical guide and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
bellow equipment Main Features
1) Simple structure in linear type ,easy in installation operation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
3) Significant high out-put with low energy consumption.
4) Running in a high automatization and intellectualization.

Features of product:
1.Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.

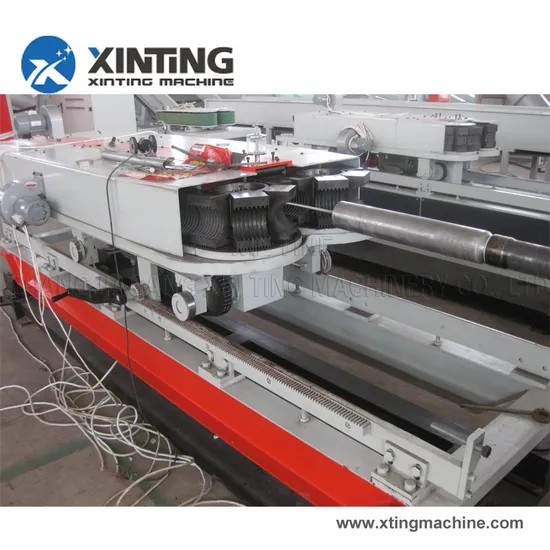

2.Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die
Product Application:
1.The production line is suitable for producing small diameter single wall bellows with PP and PE raw materials. It can continuously produce polyethylene, polypropylene, polyvinyl chloride, Eva and other bellows and PA bellows.
2.It is used as wire and cable to wear pipe, washing machine drainage pipe, vacuum cleaner pipe and ventilator
3.It is widely used in automobile wire, electric wire pipe, machine tool circuit, lamp wire protection tube, air conditioner, washing machine and so on.
Process line:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing
This kind of pipe is high temperature resistance, anti-erosion, anti-abrasion and with high strength, the pipe can be used as oil pipe in automobile braking system, and for high temperature egas, chemical liquid transferring.
Technical Parameter :

Pipe diameter	8-32mm	16-75mm
Main Extruder model	SJ50	SJ65
Main Extruder L/D	25:1/28:1/30:1	25:1/28:1/30:1
Capacity	30-50kg/h	60-80kg/h
Main Motor	11KW/15KW	18.5KW/22KW
Cooling type	Air fans cooling	Air fans cooling
Forming mould quantity	50 paris	60 pairs
Production Speed	8-12m/min	8-15m/min
Forming machine motor	1.5kw	1.5kw

---
