High Quality Durable Using Various Big Trailer CNG Tank Long Tube Trailer for Mobile Gas Station

Product Description

High Quality Durable Using Various Big Trailer CNG Tank Long Tube Trailer for Mobile Gas Station
Product Description

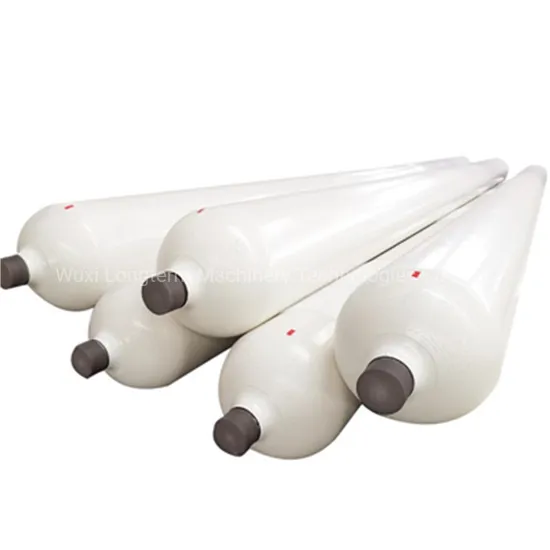

This product is a mobile pressure vessel which is connected by cylinder group and container frame, pipeline, safety accessories, loading and unloading accessories and other components.
It is the special mobile pressure vessel that suitable for storing and transporting compressed gas such as air, hydrogen, natural gas and so on, suitable for road transportation, sea and land combined transportation.
Advantage
1. Large filling capacity, light weight, cost-effective;
2. High safety: the bottle material is good plastic toughness, uniform force, reasonable stress distribution;
3. Good fatigue resistance: the use of finite element fatigue analysis and design, to ensure the good fatigue resistance of the equipment;
4. Both ends of the bottle body are provided with safety discharge device. In case of abnormal working conditions such as overpressure and fire, the safety discharge device will work automatically to ensure the safety of property and personnel.
Technical parameters

Skid size	Working Pressure	Tube Diameter	Tube QTY	Water Volume	Gas Weight	Gas Capacity
	bar	mm		m³	Kg	SCM
20ft	250	559	8	8.68	1899	2637
20ft	250	559	12	13.02	2848	3955
40ft	250	559	8	19.44	4252	5903
40ft	250	559	9	21.87	4783	6641
40ft	250	559	10	24.30	5315	7380
40ft	250	559	11	26.73	5846	8117
40ft	250	559	12	29.16	6377	8855

Production Site
Package & Delivery
Certifications
Company
Wuxi Longterm Machinery Technologies Co., Ltd., located at Longshan Road, Xinwu District, Wuxi City. It is a professional research and development, production and sales of all kinds of industrial gas cylinder making machine and gas cylinders, such as CNG gas cylinders for vehicles, low-temperature welding insulated gas cylinders, low-temperature storage tanks, D1 and D2 pressure vessels, long tube trailers, tube bundle containers, station gas cylinders and civil gas cylinders, etc. A manufacturing enterprise of large-scale special equipment of multiple types and varieties.
Related Products
FAQ
1. What's The Guarantee Period On Our Products?
- All Products We Export Has 1 Year Guarantee Period, And For The Beam Is Lifetime Promise. As Exporting Experience For Years, All Products From Our Factory Can Meet The Exporting Country's Standards On Vehicles, All Vehicles Will Be Built Upon The Related Countries' Road Condition, And Our Sales Manager Will Provide Customer The Best Suggestions Before Placing The Order. If Some Easy Weary Small Parts, We Can Offer Free In 6 Months.
2. If Customized Service Provided?
- Yes, Please Contact Our Sales Manger, We Can Offer Customized Service On Vehicle Design / Painting, Etc.
- Oem Available
4. If Our Vehicle/Trailer Can Couple With Your Tractor Head?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing, We Need To Adjust The Height And Overhang To Couple With The Using Truck.
5. Whats The Time For Delivery & Arrival?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries, 25 Workdays Will Be Achieved.

---
