Wheat Rice Straw Wood Bamboo Waste Paper Recycle Pulp Crescent Toilet Tissue Paper Machine Manufacturer

Product Description

20 tons per day Waste Paper Recycling Bamboo Wood Rice Straw Pulp Crescent Tissue Toilet Paper Making Machine
Product Description

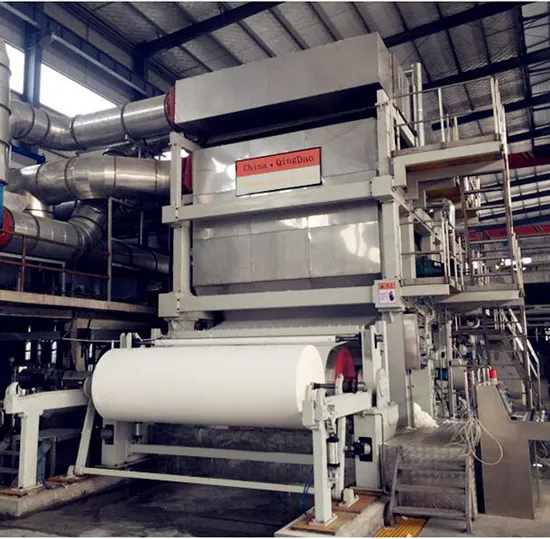

CRESCENT TISSUE PAPER MACHINE This production line is mainly consisted of paper pulping system and Jumbo tissue roll making machine. 1.Pulping Machine.The pulping system is a process in which raw materials, such as waste books, paper, edge bleaching straw pulp board, bleaching wood pulp board, etc., are processed into fibrous water suspension which meets the requirements of paper making, and then sent to the paper machine by the flow system to meet the requirements of users.
2.Paper machine.It is to meet the paper making requirements of the pulp water suspension by the filter dehydration forming, mechanical extrusion dehydration and drying process then making into paper. The use of raw materials are: waste paper, old newspaper and white waste paper edges and so on. It can produce toilet paper, facial tissue paper, napkin paper, drawing paper and so on. The machine with reliable quality, stable performance, easy operation, energy saving and environmental protection, paper making machine is the ideal product in machinery field.
3.Process from bamboo to paper.
Detailed Photos
Product Parameters

Technical Parameters
1.Main Product:	Toilet paper, napkin paper and drawing and so on
2. Gsm:	15~30g/
3.Equipment form	Crescent
4,Capacity:	20-22T/24h
5.Raw paper width:	2850-2950mm
6.Design speed:	450m/min
7.Transmission speed:	300-400m/min
8.Dynamic balancing speed:	600m/min
9.Roller balance:	G2.5 class
10.Dryer balance:	C4 class
11.Winding paper roll:	C1.6 class
12.Transmission mode:	Ac motor frequency control of motor speed digital distribution transmission
13.Arrangement mode:	Right or left arrangement(selected by the user)
14.Gauge:	3900mm
15.Large equipment 1	Dryer cylinder:Ø3000mm×1 set
