Food Industry Production Line Robust Mixing Equipment

Product Description

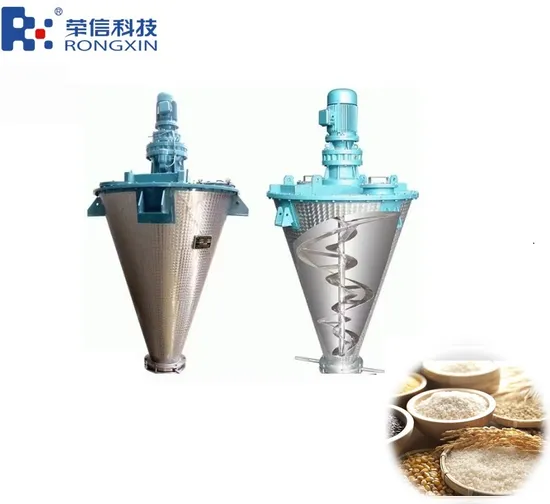

The Double Screw Conical Mixer, masterfully engineered with a pair of asymmetrical spirals on an internal cantilever, executes a dynamic dual-motion process. It performs self-rotation around its axis while simultaneously engaging in revolution driven by the cantilever around the vessel's central axis. This innovative configuration generates four distinct directional forces. The asymmetrical spirals energetically rotate to elevate the material upwards, as the cantilever's deliberate revolution circulates the material seamlessly in a circular fashion. This synchronized rotation and revolution of the spirals draw the material inwards meticulously and disperse it outwardly along a circular path. As the material streams elevate, they gracefully converge at the center, cascading downwards to fill the void below, thus establishing a comprehensive circulating flow.
Product Features
1. Cantilever Shaft Structure, ensuring that the bearings' ends remain uncontaminated by the material.
2. The meticulously small gap between the agitator blades and the container wall is designed to prevent material adhesion.
3. A standardized agitator drive box guarantees steady equipment operation while minimizing maintenance expenses.
4. Easy-Cleaning: Expertly crafted for swift and thorough cleaning between batches;
5. Durable Construction: Fabricated with enduring materials to ensure long-lasting reliability;
6. Wide Application: Versatile utility across diverse industries including pharmaceuticals, food processing, chemicals, and cosmetics;
7. Conforms to stringent standards for complete and residue-free discharge of mixed materials;
8. Gentle mixing method safeguards delicate materials such as crystalline substances;
9. Low-energy mixing is particularly advantageous for material chemical reactions;
10. The elegantly arched top cover design eradicates sanitary dead corners, facilitating easier cleaning;
11. Outfitted with a spherical discharge valve for enhanced thoroughness and stability during material discharge.
Technical Parameters

Device Model	DSH-0.3	DSH-0.5	DSH-1	DSH-2	DSH-3	DSH-4	DSH-6	DSH-10	DSH-15	DSH-20	DSH-30
Effective Volume(m³)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12	18
Maximum Batch Capacity(Kg)	200	300	650	1200	1800	2500	3600	600	9000	1200	1800
Revolution/Rotation(r/min)	3.5/12	3.5/12	3/78	3/78	3/78	1.8/65	1.6/65	1/65	1/65	1/44	1/44
Drive Power(kW)	3	3	4	5.5	7.5	11	15	18.5	22	37	45
Equipment Weight(Kg)	500	600	1200	1500	2300	2520	3700	3980	4500	5500	6800
D	φ950	φ1150	φ1580	φ1950	φ2170	φ2280	φ2560	φ3000	φ3450	φ3770	φ4100
H	2060	2350	2840	3500	3760	4360	4800	5900	6680	6700	7500

Product DisplayProduct Structure
Application
The Double Cone Mixer finds its valuable applications across industries such as powder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry.
