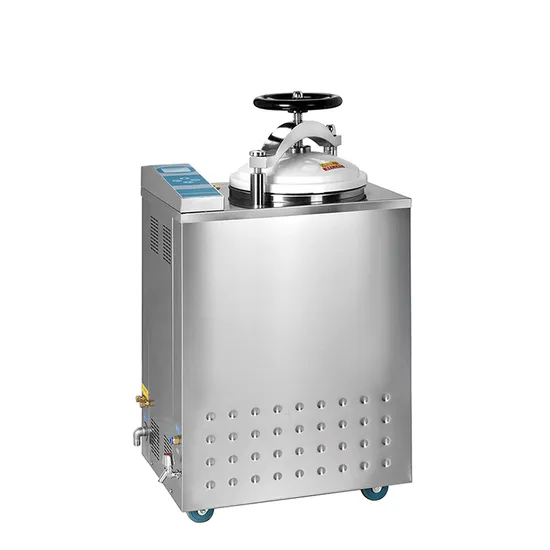

High Quality Medical Vertical Autoclave Pulse Vacuum Vertical Type Autoclave

Product Description

High quality medical vertical autoclave Pulse Vacuum Vertical Type Autoclave Product Description
The vertical steam sterilizer are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Features
♦Microcomputer controlled, digital display of working statues, touch type key.♦It dynamically shows the temperature, pressure time,vacuum rate and the cycle status.♦With fully automatically route of the water inlet, pulse vacuum, heating, sterilizing, draining, exhausting and vacuum drying.♦3 times pulse vacuum, the vacuum rate would reach -0.08 Impa after that, which ensure the completely extracting of inner air from the dressing and A,B type hollowed appliance.♦With 4 fixed programs for the appliance, medical dressing, rubber and fluid, the user also could set the program as they need randomly.♦Equipped with the PY/TT testing connector, easy for running the testing.♦Multiple pulse vacuum drying after sterilizing, which ensure the good sterilizing result.♦Equipped with ().22jxm bacteria filter, it ensure the air which enter theinner vacuumed chamber is sterile, avoid the second time contamination.♦Hand wheel type for quick-open the door. Self-inflating type seal.♦Adopted with immersed heating tube, with high heating efficiency.♦Steam-water inner circulation system: no steam discharge, and theenvironment for the sterilizing will be clean and dry.♦Automatically shut off with beep reminding after sterilization.
Product Specification

Technical Data
Design Pressure	0.245MPa	Working Pressure	0.22MPa
Design Temperature	135ºC	Working Temperature	105~134ºC
Vacuum	-0.08 MPa	Temperature Equilibrium	≤±1ºC
Water Source Pressure	0.15-0.3 MPa	Compressed Air Pressure	0.3~0.7 MPa
Steam Pressure	0.3~0.7 Mpa	Power	AC220V, 50HZ

MODEL	VA-SV50	VA-SV75	VA-SV100
Chamber volume	50L	75L	100L
	340 x 550mm	400 x 600mm	440 x 650mm
Working pressure	0.22Mpa
Working temperature	134ºC
Max. working pressure	0.23Mpa
Heat average	≤±1ºC
Timer range	0~99min
Temperature adjust range '	0~134ºC
Power	(3.2+1.6)KW/AC220V 50Hz	(3.2+1.8)KW/AC220V 50Hz	(3.2+1.9)KW/AC220V 50Hz
Overall dimension(mm)	690 x 470 x 1140	730 x 510 x 1270	750x550x1305
Transport dimension(mm)	760 x 550 x 1290	820 x 600 x 1380	840 x 640 x 1410
G.W/N.W	120Kg/100Kg	140Kg/118Kg	160Kg/128Kg

Packaging & Shipping
Certifications
Company Profile
Hefei Sada Medical Equipment Co., Ltd has more than 10 years experience since 2012 located in Anhui, China. We are a professional sterilization equipment manufacturer and leading supplier in China.For more than ten years, we engage in offering our customer one stop service in medical sterilizer, supplying competitive price and quality products to more than 1000 hospitals clinics, research institutions and universities. Our main market is in South Est Asia, South America, Africa, West Europe & America. We guarantee the transfer safety and also the goods quality for customers. All our products we will supply 2 years warranty for all customers. And we will supply online training for our medical devices. We supply O E M/ O D M service for customers. With the rapid development of SADA Medical, we build strong technical R&D team and sales team. We satisfy our customers by offering comprehensive support, purchase convenience and intime after-sales service, and we are ready to serve more and more customers in the world, no matter you are distributor or end user, we are eagerly to cooperate with you and be your long term partner.
OUR ADVANTAGES
1,OEM and ODM accepted.
2,More than 500000+ SADA Medical Equipments runs in the world
3,Competitive Price.
4,Fast Delivery.
5,Quality control inspection by TUV, SGS
6,After sales service quickly.
7,Provide multiple certificates.
Workshop View
FAQ
1.What is your warranty for the products? We offer 2 years warranty and lifetime service! 2.What is your after-sales service? We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely. 3.What is the delivery time? We have shipping agent,we can deliver the products to you by express,air freight,sea.Below is some delivery time for your reference: Express:UPS,DHL,TNT,ect (door to door),7-10 days Hand carry:Send to your hotel,your friends,your forwarder,your sea port or your warehouse in China. Air freigt(from airport to airport):3-10 days Sea(any sea port):Mombasa(30 days), Port Kelang (12 days),Manila(10 days), Lagos(45 days), Guayaquil(45 days) 4.Can you customize? Yes, Customized for Pannel, Voltage 5.How to place the order? Send Proforma Invoice before order be placed, and arranging production after payment. WHAT IS YOUR LEAD TIME OF THE PRODUCTS? Portable type 5-10days, Table top and Vertical type 10-25days, Horizontal medium type 10-20days, Large type 30-35days WHAT IS YOUR PAYMENT TERM? Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal,ect.

---
