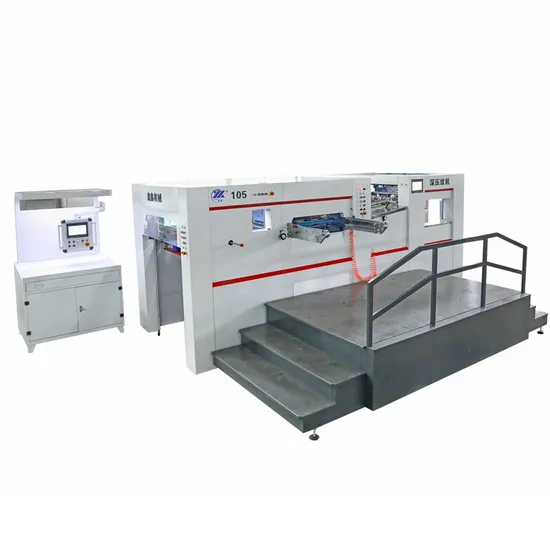

Fully Automatic Cardboard Paper Engraving Deep Embossing Machine

Product Description

Product Description YW-105E is a specialized embossing machine developed by Masterwork based on the detailed investigation on the vast majority of packaging enterprises, optimization analysis, and the patented technologies mastered by the company over the years.
The machine demonstrates a variety of supervisor to customers, such as stability, durability, large tonnage, safe, easy operating and high automation, etc. It is designed to broaden the market occupancy and create greater profits and values for customers.
Several reasons for selecting YW-105E:
1.Complete the embossing production within the width of 1060 mm×760 mm with outstanding performance.
2.Complete complex embossing products quickly at high quality even under the pressure of 650 tons.
3.Easier operation and enhances automation reduce the operators' workload, improve productivity and lower production costs.
4.Centralized positioning system and two-way pneumatic locking plate device shorten the plate change time.
5.Additional security module in electrical design boosts safety factor.
6.Optimized structure improves the stability of machine. Detailed Photos
Product Parameters

Model	YW-105E	YW-105ES
Max. Sheet size	1050x750mm	1050x750mm
Min. Sheet size	450x390mm	450x360mm
Max. Embossing size	1040x730mm	1040x730mm
Max.Speed	5500s/h(embossing)-7000s/h	7000s/h(Die cutting)
Paper thickness	150~2000gsm	150~2000gsm
Plastic Range	0.1-2.0mm	0.1-2.0mm
Max.Working Pressure	680T	680T
Heat Platform Area	12 Areas	12 Areas
Cutting Height	23.8mm	23.8mm
Temperature Range	20-150ºC	20-150ºC
Feeding Height Of Paper	1500mm	1500mm
Delivery Height Of Paper	1150mm	1150mm
Thermostat	±3ºC	±3ºC
Accuracy	±0.15mm	±0.15mm
Cutting Acuracy	≤±0.1mm	≤±0.1mm
Total Power	45KW	50kw
Total Weight	20.8T	22.8T
Overall Dimension	5000x4160x2200mm	7400x4160x2200mm

Standard Equipment:
Automatic paper feeder Embossing/Die Cutting/Stripping Unit Automatic paper collecting system Packaging & Shipping

---
