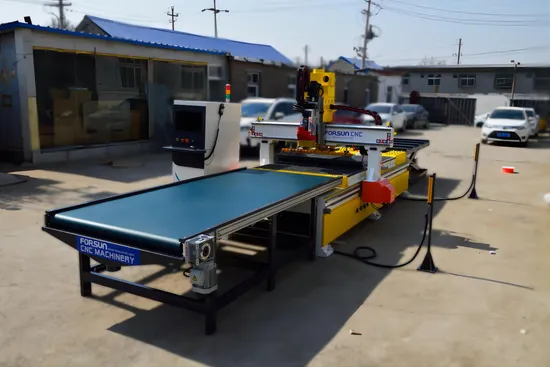

Automatic CNC Nesting Machine 3 Axis CNC Router 1325 Cabinet Making Machine

Product Description

Automatic cnc nesting machine 3 axis cnc router 1325 cabinet making machine

Product Description
What is the feature of automatical loader and unloader?
1300*2500*200mm effective working area
Taiwan SYNTEC control system
Japan YASKAWA servo motor and drivers
9.0KW ATC air cooling Spindle
Auto tool calibration
11KW DELTA Inverter
French electrical components;
Vacuum and T-slot working table
Auto pusher
strong body
Auto adsorption system
Detailed Photos

What is the technical Data of our automatical loader and unloader?

Items	Description
1	Travailing size	1300*2500*200mm
2	Working size	1300*2500*200mm
3	Loading and Unloading Speed	15 m/min
4	Transmission	X/Y rack and pinion drive, Z ball screw drive
5	Table structure	2 layer vacuum table
6	Spindle power	9.0 KW
7	Spindle speed	24000r/min
8	Travailing speed	80m/min
9	Working speed	25m/min
10	Tool magazine	Carousel
11	Tool slots	12 PCS
12	Driving system	YASKAWA
13	Voltage	AC380/3PH/50HZ
14	Controller	Syntec 6 MB

Our Advantages
What is the advantage of our automatical loader and unloader?

Spindle	9KW ATC Air Cooling Spindle Top brand of the world. Spindle speed: 0-24000RPM
Motor	Japan YASKAWA servo system. high working efficiency and stable running promised
Control system	Taiwan SYNTEC control system 6MB model Thanks to its panel based design philosophy, and IP65's protection level, the Taiwan SYNTEC control system 6MB model series is ideal for harsh environments.
Tool magazine	Carousel 12 PCS Tool Magazine The use of an 12 Tool Rotary Carousel speeds up tool changes assuring faster cycle times increasing production throughput.
Auto pusher	Combine the conveyor off loading table with the Automatic indexing table and material loader you have a full automatic material handling solution for your factory.
Strong Body	precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.

Suitable materials
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, ABS
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum
Working samples of apparel cutting machine


Packaging & Shipping
What is Packaging of nesting cnc router Machine?

customer visit
Customer visit of our factory
Customer evaluation
How about the services of our nesting cnc router?
Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc
Why choose us?
FAQ
Q1:How long is the delivery time of this cnc router machine?
For standard machines, it would be 7-15 days;
For non-standard machines and customized machines according to client s specific requirements,
it would be 15 to 30 days.
Q2: What mode of payment for this cnc router machine?
T/T, 50% deposit and the balance 50% should be paid before shipment.
Q3: If some problems happened to this cnc milling machine during warranty
period, what should i do?
We will supply free parts in machine warranty period if machine have some problem. While we
also supply free after-service forever,so any doubts,just let us know,we will give you solutions in 30 minutes.
