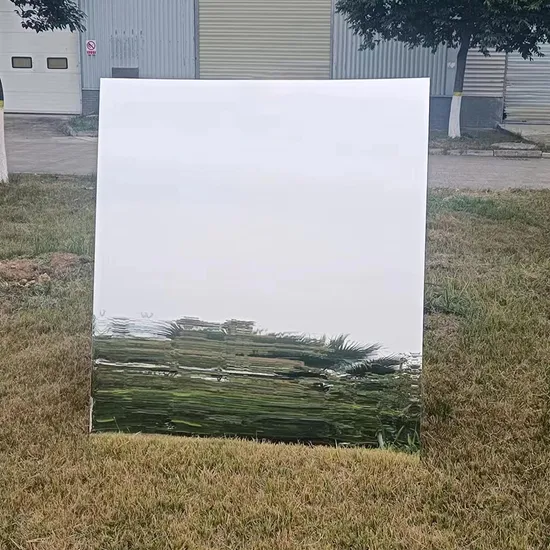

High Reflective Solar Glass Mirror for Csp Parabolic Troughs in Industrial Applications

US$59.00-79.00 100 Pieces (MOQ)

Basic Info.

Model NO.
1463mm*1356mm
Shape
Curve
Appearance
Bent Tempered
Standard
International Standard
Steel Degree
Tempered Glass
Thickness of Flat Tempered Glass
4mm
Thickness of Curve Tempered Glass
4mm
Fragment State
No
Technics
Physically Tempered
Flatness
High Class
Usage
Building, Electronics & Instruments, Auto Manufacturing
Transport Package
Wooden Box
Specification
1463mm*1356mm
Trademark
MLSUN
Origin
China
Production Capacity
500000pieces/Day

Packaging & Delivery

Package Size
145.00cm * 110.00cm * 169.00cm
Package Gross Weight
1060.000kg

Product Description

We manufacture 4 sizes of Reflector Mirrors, used for CSP Parabolic Trough solar concentrators.
Mirror 1463*1356mm is used for Parabolic Trough 2.55m*6m.
Mirror 1570*1356mm is used for Parabolic Trough 2.55m*8m.
Mirror 1700*1501mm and Mirror 1700*1641mm are used for Parabolic Trough 5.77m*12m.
Data Sheet: 4 models of Reflector Mirrors (tempered glass).
Model 1463*1356 mm 1570*1356 mm 1700*1501 mm 1700*1641 mm
Mirror length (straight) 1463 mm 1570 mm 1700 mm 1700 mm
Mirror width (curve) 1356 mm 1356 mm 1501 mm 1641 mm
Wall thickness 4 mm 4 mm 4 mm 4 mm
Area 2 m² 2.1 m² 2.6 m² 2.8 m²
Weight 19.8 kg 21.3 kg 26.3 kg 28.7 kg
Focal distance 850 mm 850 mm 1710 mm 1710 mm
