US$5,500.00-9,800.00
|
1 Set
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Vertical milling machine
benchtop milling machine
Universal milling machine
Vertical mill
T-slotes (No./Width/Pitch)
3/16/65mm
Spindle speed
80-4200rmp(variable)
Table size
1270*254mm (Optional:1370*254mm)
Transport Package
Standard Plywood Package
Production Capacity
50 Sets/ Month
Product Description
Product Description

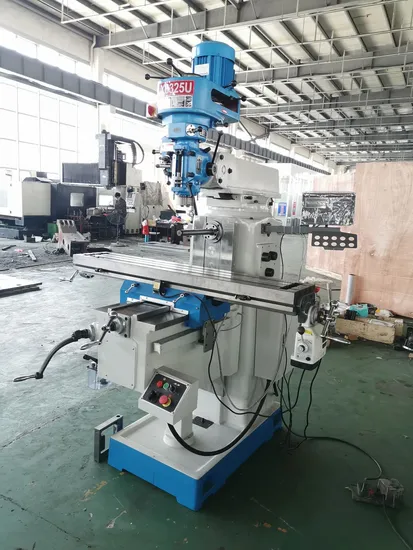

X6325U vertical and horizontal manual metal milling machine
Milling machine X6325U:
We're professional X6325U small turret milling machine suppliers in China, specialized in providing high quality products with low price.
Universal milling machine having a table fitted with all motions and a dividing head with change gears so that it can perform any type of milling operation.
Specificaiton | X6325U |
Table size | 1270×254mm (Optional:1370×254mm) |
T-slotes (No./Width/Pitch) | 3/16/65mm |
Table travel (X/Y/Z) | 800×400×400mm |
Spindle taper:vertical/horizontal | R8/NT30(V),NT40 |
Ditance between horizontal nose and table surface | 0-400mm |
Ditance between spindle axis and ram surface | 270mm |
Spindle speed range | 80-4200rmp(variable) |
66-4540( vertical,16 steps) |
40-1300rpm( horizontal, 12 steps) |
Arm travel | 400mm |
Main motor power | 3KW(vertical) |
4KW(horizontal) |
Machine overall size (L*W*H) | 1600×1550×2150mm |
Machine weight | 1380kg |
Detailed Images
Optional accessories:
1. Taiwan variable speed head;
2. 3 axis DRO;
3. X/Y power feed;
4. Z-axis lifting motor.
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
>>
