Portable WiFi 7inch Touch Screen Ahd/CVBS CCTV Test Monitor for Pipe Sewer

Product Description

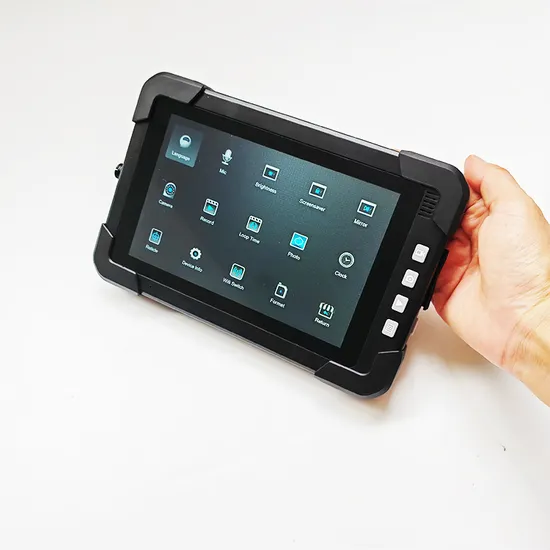

Portable WiFi 7inch Touch Screen AHD/CVBS CCTV Test Monitor for Pipe Sewer
Product Introduction:

All in one 7 " Touch Screen AHD monitor DVR with HD record and display function is new generation from 3rd Eye Electronics Co., Ltd. This product is compatible with full AHD and CVBS camera signal. And it integrates multinomial IT high-tech. It can achieve local HD surveillance video independently, can also be used in camera debugging and installation, and outdoor HD monitoring operations.
RD700 all in one 7 " DVR can be widely used in security precautions and monitoring of the family, field, public security, medical, equipment and other areas.

Product Features:
* Support AHD, CVBS mixed signal access. * 7inch IPS touch screen, full view 170°,built-in 5000mah li-battery. * Supports HD 5MP signal real-time preview video. *Supports multi-languages and 2-256GB TF card. * Special function 10 times zoom in/out and LED control. *Supports recording, taking photos and playback, mirror 180 degree
* Supports 12V power supply to power the camera.
* Equipped with sunshade: to see the screen clearly in the sun. Silk-screen botton press with good touch feeling; 7INCH Touch Screen Monitor with wifi function
Product Specification:

Items	Value
Display	Resolution	1280 X 800 Pixel 7 inch touch screen
	View angle	View angle 170 °
	Brightness	600 cd/
Video	Video input	Full HD AHD,CVBS signal, Provides 12VDC output for camera
	Response	<0.1s
	Power output	12V 300MA
	Video LED control output	adjust LED light brightness
	Video Record& Storage Pixels(16:9)	4K: 3840X2160 2K: 1080
	Video compress	H.264
	Video storage Format	mp4
Audio	Audio Frequency Range	20HZ-20KHz AAC
	Audio Compression Format	AAC
Photo	Photo storage Format	JPG 32M, 8M, 4M, 2M,
Storage	External SD card	TF card 2-256GB (Optional)
	128GB Recording time	about 18 hours
Operating System	PC	Windows & Mac OS
	Port	USB 2.0
	Language	English, German, French, Italian, Portuguese, Spanish, Korean, Japanese,Chinese Simplified, Chinese Traditional; English, Russian
Power	Working voltage	DC :5-12V
	Working Current	2A
Battery	Built-in Li Battery	5000Mah/37Wh
	Working time	≥5hours
Dimension:(LxWx H)	DVR main part	210mm x 140mmx 23mm
	DVR main part	600gram

Package includes:

1 x 7inch All-in-one AHD DVR monitor
1 x AC adapter
1 x User manual
1 x USB cable
1 x AV-OUT cable
1 x Package color box

Our Services:

OEM&ODM available
Silk print logo on the product or on the start page of the DVR.
Customized Color box or user manual.
Any of your idea on our product we can help you to design and put it into production.
High quality, fashion designs, reasonable&competitive price fast lead time.

After-Sale service
All products will have been strictly Quality checked in house before packing.
All products will be well packed before shipping .
All of our products have 2 year warranty.
And we sure the product will be free from maintenance within warranty period.

Fast Delivery
Sample orders in stock, and 3-5 days for bulk production

Package & Shipping, Trade terms:
Shipment:
- DHL/UPS/TNT or any other service you prefer
- Customer specifying freight forwarder or negotiable method
- Delivery time: Sample is ready and can be sent out immediately after payment arrives,10~50 sets: 1~2 working days; 50 ~100 sets: 2~7ays; 101~500 sets:7~14days

Payment terms:
- Payment: Western Union; T/T (bank transfer); PayPal; Moneygram
- MOQ:1pc
- Warranty: 1 Year
- Package information: 1set/Plastic equipment case ; 10 pcs or more/carton box

---
