US$55,000.00-62,000.00
|
1 Set
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Processing Precision
0.020mm
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Product Name
Pipe Threading CNC Lathe
Max. Swing Dia. Over Bed
800mm
Max Dia.Swing Over Cross Slide
480mm
Width of Bed
600/650/755mm
Range of Spindle Speed
L:20-100 H:100-300 Rpm
Turret
Vertical Four-Station
Positioning Accuracy
0.020mm
Overall Dimensions(Lxwxh)
4200X2100X1900mm
Transport Package
Iron Sheet Packaging
Production Capacity
1000/Year
Packaging & Delivery
Package Size
430.00cm * 220.00cm * 220.00cm
Package Gross Weight
8700.000kg
Product Description
Product Features
Product Description

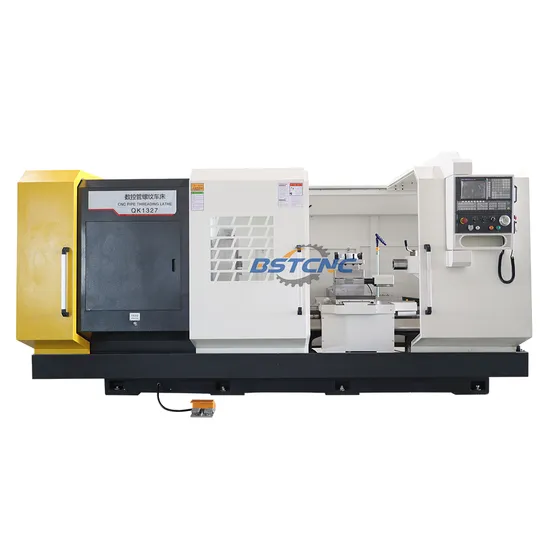

This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads, including metric,inch and taper threads. As well as having all the common functions of normal CNC lathe, such as processing inner and outer cylindrical surface, conical surface, spherical surface, curved surface, groove, end face, etc. This series lathe is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coup-ling and son on.
Product Parameters
| ITEM | UNIT | QK1332 |
| Nc System | | Standard equipment:GSK980TDi
Alternative configuration:FANUC Oi-TF;SIMENS 808D;KND K1000Ti; GSK980TDC |
| Max dia.swing over bed | mm | 800 |
| Max dia.swing over cross slide | mm | 480 |
| Max.length of work-piece | mm | 1500 |
| Pipe threading range | mm | Φ80-320 |
| Width of bed | mm | 600/650/755 |
| Spindle bore | mm | 325 |
| Spindle center height | mm | 400 |
| Power of spindle motor | KW | 15/22 |
| Mode of spindle speed | | Two gears, smooth adjustment |
| Range of spindle speed | r/min | L:20-100
H:100-300 |
| Max.traverse of X/Z | mm | X:450 Z:1250 |
| X/Z rapid traverse | mm/min | 4000/5000 |
| Tailstock quill | Diameter | mm | 100 |
| Travel | mm | 250 |
| Taper | | Morse NO.6 |
| Model | | SLD170A04N |
| Turret | No.of tool stations | | Vertical four-station |
| Dimension | mm | 32×32 |
| Turret indexing time | s | 5.6 |
| Chuck | | K72-780 four jaw chuck |
| Positioning accuracy | mm | 0.020 |
| Repositioning accuracy | mm | 0.01 |
| Overall dimensions(L*W*H) | mm | 4200×2100×1900 |
| Machine weight | T | 8/8.7 |
