Full Automatic Total Sulfur Tester (Ultraviolet Fluorescence)

Product Details

Product Description

Product Description

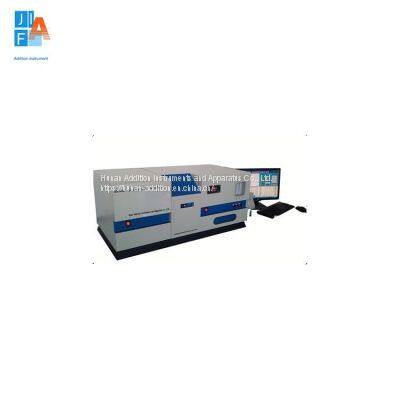

Full Automatic Total Sulfur Tester (Ultraviolet Fluorescence)
ASTM D5453
Product model: JF0689Z
Product Introduction
This instrument is a new generation of compact testing instrument developed based on the principle of ultraviolet fluorescence and computer technology. When the sample is introduced into the high temperature cracking furnace, it undergoes oxidative cracking, and the sulfur in it is quantitatively converted into sulfur dioxide, and the reaction gas enters the fluorescence chamber after drying and dehydration. In the fluorescence chamber, part of the sulfur dioxide is converted into excited state sulfur dioxide after being exposed to ultraviolet light.
When the sulfur dioxide transitions to the ground state, photons are emitted, and the photoelectron signal is received and amplified by the photomultiplier tube. After being amplified by an amplifier and processed by a computer, it can be converted into an electrical signal proportional to the light intensity. Under certain conditions, the fluorescence intensity of sulfur dioxide generated in the reaction is proportional to the amount of sulfur dioxide generated, and the amount of sulfur dioxide is proportional to the total sulfur content in the sample, so the total sulfur content in the sample can be determined by measuring the fluorescence intensity. Before analyzing the sample, first use the calibration curve of the standard sample, and then analyze the sample under the same conditions. The program automatically calculates the sulfur content of the sample based on the calibration curve of the standard sample. It can be widely used in petroleum, chemical industry, electric power, coal, food, environmental protection and other fields. It is the most advanced sulfur analysis instrument in the world.
Technical Parameter
1. Applicable standards: ASTM D5453
2. Measuring range (ng/ul): 0.5～5000
3. Measurement error: ≤10×10-6, the error is less than 10% gt; 10%×10-6, the error is less than 5%
4. Temperature control range: room temperature～1100℃
5. Temperature control accuracy: ±1℃
6. Gas source requirements: high-purity oxygen>99.99%, high-purity argon>99.99%
7. Resistance to ground (ohm): ≤5
8. Current (A): 15～20
9. Working power supply: AC220V 50HZ
10. Power of the whole machine: 2000W
11. Instrument size: 850*430*500mm
12. Net weight: 51KG
Main Feature
1. Wide linear range, high sensitivity, strong anti-interference ability, high degree of automation, and accurate analysis results.
2. The main components of the instrument use high-quality components, and the performance of the whole machine is better than similar instruments
3. The high pressure can be adjusted, and the standard sample calibration can adopt single-point or multi-point calibration, which is easy and fast to operate.
4. Easy to operate, based on the English operation interface of Windows98/XP, the operation is more convenient and fast.
5. You only need to click the mouse to complete all parameter settings and condition selection;
6. The collection, processing, storage and printing of data are controlled by the computer.

---
