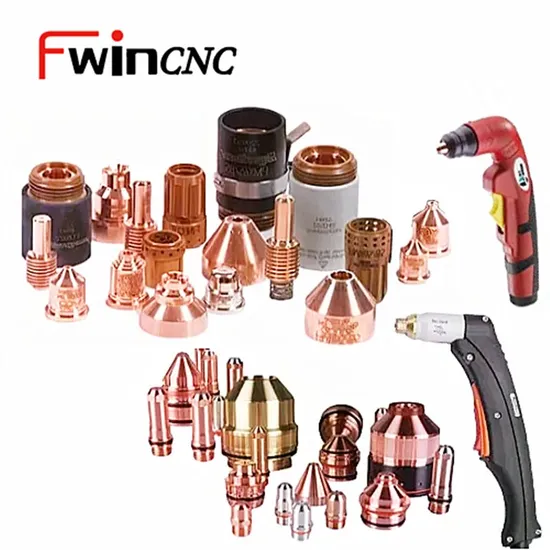

Plasma Cutting Torch Nozzle Electrode Shield Retaining Cap Swirl Ring for Lincoln/Kjellberg/Thermal Dynamics/Esab/P80/Hypertherm Consumable

Product Description

LARGE STOCK OF HYPERTHERM CONSUMABLES and China plasma source.
Allwin CNC Machinery holds the largest stock of genuine Hypertherm plasma consumables and spare parts. Available in-stock, we offer competitive pricing and superb service. We support current and discontinued machines and Hypertherm plasma cutting systems and offer same day dispatch via a range of delivery services for orders received before 2.30 p.m.
Why Purchase Hypertherm Plasma Torch Consumables Nozzles Electrodes From Us?
Along with industrial technology growing fast, more and more CNC plasma cutting machine become subjects for metal fabriction.
Being a professional supplier for CNC machines, we would like to recomend Hypertherm plasma cutter with its consumables.
1. Larger stock with all kinds of models at very competitive price.
2. The Hypertherm plasma accessories consumables are very competitive. The more you order, the lower the price; it is very suitable for distributors who purchase in large quantities or users who use Hypertherm plasma accessories consumables in large quantities;
3. The plasma nozzle/plasma electrodes and plasma shield cap are processed and produced by high-precision machines, with beautiful appearance and quality that fully meets the requirements of use;
4. Our consumables, especially nozzles, electrodes, and protective caps have a relatively long service life and reliable cutting accuracy. Packaging & Shipping

NEXT DAY DELIVERY
We understand that downtime is not an option for our customers. That is why we have the largest stock of genuine Hypertherm consumables & parts, enabling us to immediately dispatch most parts so a customer's lost production is reduced to an absolute minimum. Non-account customers can order by telephone and pay by credit card for immediate dispatch.
CHECK WHICH PLASMA CONSUMABLES YOU NEED
If you are looking for plasma consumables, torches or torch assembly options it's very important you order the correct parts based on your system, material or amperage.
Therefore we will provide you with an overview of all current and legacy Hypertherm plasma cutting systems, so you could see which option fits best your needs.

NO.	NAME	Part NO.	MODEL
1	nozzle	220671	POWERMAX45
2	shield cap	220673
3	nozzle retaining cap	220713
4	electrode	220669
5	swirl ring	220670
NO.	NAME	Part NO.	MODEL
1	nozzle	220671	POWERMAX45(handheld)
2	shield cap	220674
3	nozzle retaining cap	220713
4	electrode	220669
5	swirl ring	220670
NO.	NAME	Part NO.	MODEL
1	nozzle	220941	POWERMAX45xp
2	shield cap	220817
3	outer retaining cap	220854
4	electrode	220842
5	swirl ring	220857
NO.	NAME	Part NO.	MODEL
1	nozzle	220941	POWERMAX45xp(handheld)
2	shield cap	220818
3	outer retaining cap	220854
4	electrode	220842
5	swirl ring	220857
NO.	NAME	Part NO.	MODEL
1	nozzle	220819	POWERMAX65
2	shield cap	220817
3	nozzle retaining cap	220854
4	electrode	220842
5	swirl ring	220857
NO.	NAME	Part NO.	MODEL
1	nozzle	220819	POWERMAX65(handheld)
2	shield cap	220818
3	nozzle retaining cap	220854
4	electrode	220842
5	swirl ring	220857
NO.	NAME	Part NO.	MODEL
1	nozzle	220816	POWERMAX85
2	shield cap	220817
3	nozzle retaining cap	220854
4	electrode	220842
5	swirl ring	220857
NO.	NAME	Part NO.	MODEL
1	nozzle	220816	POWERMAX85(handheld)
2	shield cap	220818
3	nozzle retaining cap	220854
4	electrode	220842
5	swirl ring	220857
NO.	NAME	Part NO.	MODEL
1	nozzle	220990	POWERMAX105
2	shield cap	220993
3	nozzle retaining cap	220854
4	electrode	220842
5	swirl ring	220994
NO.	NAME	Part NO.	MODEL
1	nozzle	220990	POWERMAX105(handheld)
2	shield cap	220992
3	nozzle retaining cap	220854
4	electrode	220842
5	swirl ring	220994
NO.	NAME	Part NO.	MODEL
1	nozzle	220975	POWERMAX125
2	shield cap	220976
3	nozzle retaining cap	220977
4	electrode	220971
5	swirl ring	220997
NO.	NAME	Part NO.	MODEL
1	nozzle	220975	POWERMAX125(handheld)
2	shield cap	420000
3	nozzle retaining cap	220977
4	electrode	220971
5	swirl ring	220997
NO.	NAME	Part NO.	MODEL
1	nozzle	420044	Maxpro200
2	shield cap	420045
3	nozzle retaining cap	220936
4	electrode	220937
5	swirl ring	220488

NO.	RefNO.	COSME	Description
1	*BK277154	COS277154	Outer-Retaining Cap, Mild Carbon Steel/Stainless Steel, 30A-275A
	*BK284150	COS284150	Outer-Retaining Cap, Mild Carbon Steel/Stainless Steel, 30A-400A
2	BK277145	COS277145	Shield Cap, Mild Carbon Steel, 30A
	BK277115	COS277115	Shield Cap, Mild Carbon Steel, 50A
	BK277150	COS277150	Shield Cap, Mild Carbon Steel/Stainless Steel, 70A
	BK277286	COS277286	Shield Cap, Mild Carbon Steel, 100A
	BK277117	COS277117	Shield Cap, Mild Carbon Steel, 150A
	BK277274	COS277274	Shield Cap, Mild Carbon Steel/Stainless Steel, 200A
	BK277263	COS277263	Shield Cap, Mild Carbon Steel, 275A
	BK284123	COS284123	Shied Cap, Mild Carbon Steel, 400A
	BK277146	COS277146	Shield Cap, Stainless Steel, 100A
	BK277298	COS277298	Shield Cap, Stainless Steel, 150A
	BK277211	COS277211	Shied Cap, Stainless Steel, 260A
	BK284115	COS284115	Shield Cap, Stainless Steel, 400A
3	BK277153	COS277153	Nozzle Retaining Cap, Mild Carbon Steel, 30A-70A
	*BK277151	COS277151	Nozzle Retaining Cap, Mild Carbon Steel, 100A-150A
	*BK277152	COS277152	Nozzle Retaining Cap, Mild Carbon Steel, 150A
	*BK277266	COS277266	Retaining Cap, Mild Carbon Steel, 200A-275A, Stainless Steel, 150A-200A
	*BK284121	COS284121	Nozzle Retaining Cap, Stainless Steel, 400A
	*BK277113	COS277113	Nozzle Retaining Cap, Stainless Steel, 70A-100A
	*BK277280	COS277280	Nozzle Retaining Cap, Stainless Steel, 260A
	*BK284156	COS284156	Nozze Retaining Cap, Stainless Steel, 400A
4	BK277120	COS277120	Nozzle, Mild Carbon Steel, 30A
	BK277122	COS277122	Nozzle, Mild Carbon Steel, 50A
	BK277125	COS277125	Nozzle, Mild Carbon Steel, 70A
	BK277284	COS277284	Nozzle, Mild Carbon Steel, 100A
	BK277293	COS277293	Nozzle, Mild Carbon Steel, 150A
	BK277289	COS277289	Nozzle, Mild CarbonS tee, 200A
	BK277269	COS277269	Nozzle, Mild Carbon Steel, 275A
	BK284125	COS284125	Nozzle, Mild Carbon Steel, 400A
	BK277124	COS277124	Nozzle, Stainless Steel, 70A
	BK277126	COS277126	Nozzle, Stainless Steel, 100A
	BK277297	COS277297	Nozzle, Stainless Steel, 150A
	BK277287	COS277287	Nozze, Stainless Steel, 200A
	BK277118	COS277118	Nozzle, Stainless Steel, 275A
	BK284157	COS284157	Nozzle, Stainless Steel, 400A
5	BK277140	COS277140	Swirl Ring, Mild Carbon Steel, 30A-50A, Stainless Steel, 70A
	BK277142	COS277142	Swirl Ring, Mild Carbon Steel, 50A-70A
	BK277283	COS277283	Swirl Ring, Mild Carbon Steel, 100A
	BK277139	COS277139	Swirl Ring, Mild Carbon Steel, 150A, Stainless Steel, 150A/260A
	*BK277143	COS277143	Swirl Ring, Mild Carbon Steel, 200A
	*BK277258	COS277258	Swirl Ring, Mild Carbon Steel, 275A
	*BK279422	COS279422	Swirl Ring, Mild Carbon Steel, 400A
	*BK277141	COS27741	Ring, Stainless Steel, 100A
	*BK277259	COS277259	Swirl Ring, Stainless Steel, 200A
	*BK284122	COS284122	Swirl Ring, Stainless Steel, 400A
6	BK277130	COS277130	Electrode, Mild Carbon Steel, 30A
	BK277131	COS277131	Electrode, Mild Carbon Steel, 50A-70A
	BK277282	COS277282	Electrode, Mild Carbon Steel, 100A
	BK277292	COS277292	Electrode, Mild Carbon Steel, 150A
	BK277291	COS277291	Electrode, Mild Carbon Steel, 200A
	BK277270	COS277270	Electrode, Mild Carbon Steel, 275A
	BK284124	COS284124	Electrode, Mild Carbon Steel, 400A
	BK277132	COS277132	Electrode, Stainless Steel, 70A
	BK277133	COS277133	Electrode, Stainless Steel, 100A
	BK277135	COS277135	Electrode, Stainless Steel, 150A-260A
	BK284159	COS284159	Electrode, Stainless Steel, 400A

PLASMA CUTTING CONSUMABLES: WHAT, WHY, AND HOW LONG DO THEY LAST?
Plasma cutters contain a number of consumable parts, which is unsurprising when you consider the very high temperatures involved in producing and focussing an arc of plasma. Keeping on top of the condition of these consumables is very important as it will help to ensure a consistent high-quality cut, and reduce the time involved in processing and refining your finished parts.
WHAT ARE PLASMA CUTTER CONSUMABLES?
Plasma cutter consumables are a set of components in your plasma cutter that gradually wear over time until they need to be replaced: they have a life cycle. The consumables are all found in the cutting torch itself, which is where most of the energy is focussed, and keeping track of wear and tear is a key part of maintaining an efficient machine that cuts well and lasts a long time. Plasma cutting torch consumables include: a swirl ring, electrode, nozzle, retaining cap, and shield cap.
NOZZLE
The nozzle focuses the plasma arc and the gas that surrounds it to make a clean and precise cut.
ELECTRODE
The electrode is a narrow piece of copper containing hafnium (which is an excellent conductor of electricity). Its job is to receive the electrical current from a cathode block inside the torch to which it is connected, and to focus the charge through its tip, which causes it to arc onto the workpiece.
RETAINING CAP
The retaining cap essentially holds all of the consumable parts of the torch together. As temperatures at this end of the machine are extremely high, it's not just the parts creating and focussing the arc that are worn down; the component holding them together also degrades over time.
SHIELD CAP
The shield is there to protect the torch and its other components from the sparks and molten metal that result from the plasma cutting process.
It takes the brunt of the fallout so that wear to other components is minimised as much as possible.
HOW LONG DO PLASMA CUTTER CONSUMABLES LAST?
Now that we've looked at the role each of these consumable parts play, we'll move on to discuss how long these elements last. The nozzle and the electrode will wear out more quickly than other components, as they are most directly involved with the creation and focussing of the cutting arc. You'll notice nozzle wear primarily in the quality of the cut you are achieving. As the nozzle wears, the hole in the tip gets larger, which makes the plasma arc thicker and produces a wider cut (kerf) in your workpiece. You will be able to see with a simple visual inspection when the hole in the nozzle becomes too large and needs replacing. Application
FAQ
Question: Can I have a visit to your factory before the order?
Answer : Yes, look forward to communicating and cooperating with you!
Question: Can I test that sample?
Answer : Yes, we can support sample at a reasonable charge.
Question: Can I put my logo on the boxes/cartons?
Answer : Yes, we have a capability and professional efficient team, provide OEM and ODM .
Question: Are you a trading company or manufacturer ?
Answer : We are factory, also do trading company business.
And our company do exporting 10 years.

---
