Product Details
Product Description
Product Description
Short Description:

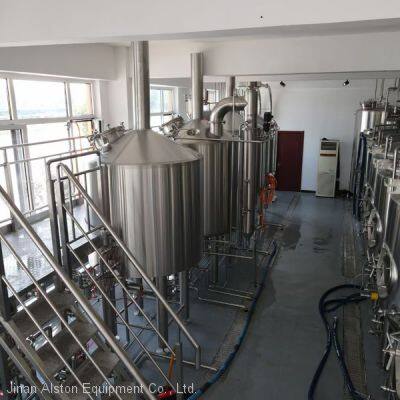

1000L Beer Brewery system
General description:
Capacity:5HL 10HL 20HL 30HL Or 10BBL 15BBL 20BBL 30BBL or customized
Heating method: steam (recommended)
Efficiency: Max 6 Brews per day
Brewhouse is designed and fabricated as the exact brewing process request from client and the local requirement. Tanks size designed as exact beer plato / gravity from client. The goal is helping client with easy brewing operation, making the whole brewhouse setup more suitable for right recipe , increasing the efficiency and lowering the energy cost etc.
Brewhouse:
3 vessel: Mash tun+Lauter tank+Kettle/Whirlpool
2 vessel: Mash/Lauter tank+Kettle/Whirlpool
2 vessel: Mash/Kettle/Whirlpool+Lauter tank
Brewhouse Features
● Higher wort extract to meet brewing process.
● Lower energy cost and material consumption.
● Well adjusted temp and water blending unit for better grain and water mixing.
● Higher efficiency steam jacket to increase heating efficiency and lower energy consumption.
● Special tank and piping construction to avoid the wort aeration problem and decrease the material lost.
● Special designed steam condensing unit, with both steam condensing and water heating function.
● Adopting advanced world famouse brand components to ensure the smoothly running.
● Support different heating way, steam, direct fire and electric, depending on site and local utility costs.
● High-quality stainless steel material 304 or 316 and exquisite appearance.
● Brewing vessel and fermentation tanks are tested prior to shipment to avoid on-site repairs, guarantee uninterrupted startup and assured vessel performance.
Fermenter Features
2.Fementation tank
All tanks are made by sanitary SS304 material, which meet domestic and international food safety and hygiene standard. They are cylindrical cone bottom tank, the cone is 60-72degree for exhaust the yeast easier. The external are made by 2B stainless steel drawing board, connected by welding.
The internal pickling passivation treatment, and equiped with 80mm polyurethane insulation.
The tanks with dimple cooling jacketon cone and cylinder, they are cooled by glycol water or alcohol water.
Also the glycol inlet is seperated control according to volume of tank.
Type: Double Layer Conical Tank
Volume: 300L, 500L, 1000L and 2000L. (Support Customized).
Accessories:
● Top Manway or Side Shadow less Manway
● Racking Port with Tri-Clover Butterfly Valve
● Discharge Port with Tri-Clover Butterfly Valve
● 2 Tri-Clover Outlets with Butterfly Valves
● CIP Arm and Spray Ball
● Sample Valve
● Pressure Gauge
● Safety Valve
● Thermowell
>>
