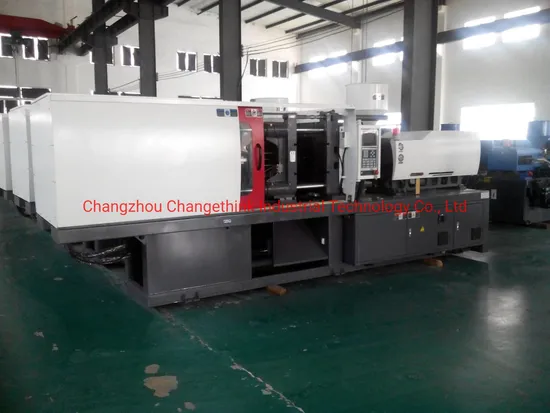

Servo Plastic Injection Molding Machine

US$100,000.00 1 SET (MOQ)

Basic Info.

Model NO.
LTY-6000
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
600T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years

Product Description

SPECIFICATION LTY6000
A B C D
INJECTION UNIT
SCREW DIAMETER mm 90 95 100 105
SCREW L/D RATIO L/D 20 19 18 17.1
SHOT VOLUME(THEORETICAL) cm3 2544 2835 3140 3461
INJECTION WEIGHT(PS) g 2315 2580 2858 3149
INJECTION RATE g/s 552 612 679 748
INJECTION PRESSURE MPa 184 165 149 135
SCREW SPEED rpm 150
CLAMPING UNIT
CLAMP FORCE KN 6000
OPEN STROKE mm 850
SPACE BETWEEN TIE BARS(W*H) mm 870x870
MAX.MOULD HEIGHT mm 900
MIN.MOULD HEIGHT mm 350
EJECTOR STROKE mm 250
EJECTOR FORCE KN 150
OTHER
MAX.PUMP PRESSURE MPa 16
PUMP MOTOR POWER kW 30+37
HEATING POWER kW 42.95
MACHINE DIMENSION(L*W*H) m 10.3x2.22x2.61
OILTANK CUBAGE L 900
MACHINE WEIGHT t 28
