Quilt Production Line Computer Leather Quilt Sewing Single Needle Single Head Quilting Machine

Product Description

Quilt production line computer leather quilt sewing single needle single head quilting machine
Product Description
1. Reliable industrial control system. English layout in LCD, easy to operate;
2. With the function of pattern browsing, it can automatically identify a variety of pattern formats, and can rotate and mirror the pattern;
3. There are 280 kinds of patterns are available for selection;
4. The pattern can be automatically scaled by setting boundary and margin space;
5. The normal speed is 1300r, and 2200r~2800r can be customized with servo motor and automatic thread cutting device.
6. Can be equipped with roll quilt machine.
Product Parameters

Model	AQ-3A	AQ-3-B	AQ-3-C	AQ-3-D
Max quilt size	2.2*2.4m	2.4*2.6m	2.6*2.8m	2.8*3.0m
Needle drop size	2.0*2.2m	2.2*2.4m	2.4*2.6m	2.6*2.8m
Max thickness	1200g
Voltage	220V, 50hz, single phase or customized
Speed	1300r/min or customized
Machine size	2.8*2.9m	3.0*3.1m	3.2*3.3m	3.4*3.5m
Weight	700kg	750kg	800kg	850kg

Detailed Photos

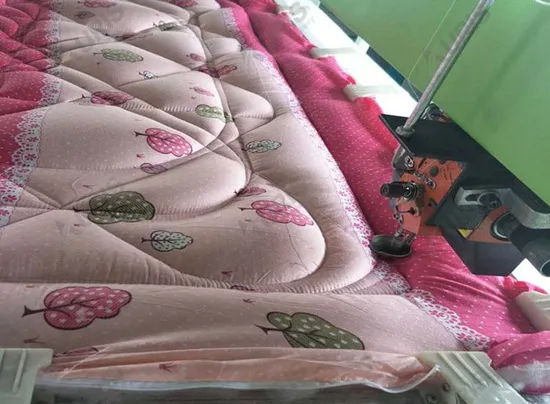

It can be used for quilting various quilts, sofa covers, bedspreads, comforter, mattresses and other thick materials.
The structure is simple, and the installation and disassembly are very convenient.
Single needle and LCD screen controlling, easy to operate.
