5cbm Professional Sheep Camel Tmr Feed Mixing Equipment Grass Straw Mixer

Product Description

5cbm Professional Sheep Camel TMR Feed Mixing Equipment Grass Straw Mixer
Product Description

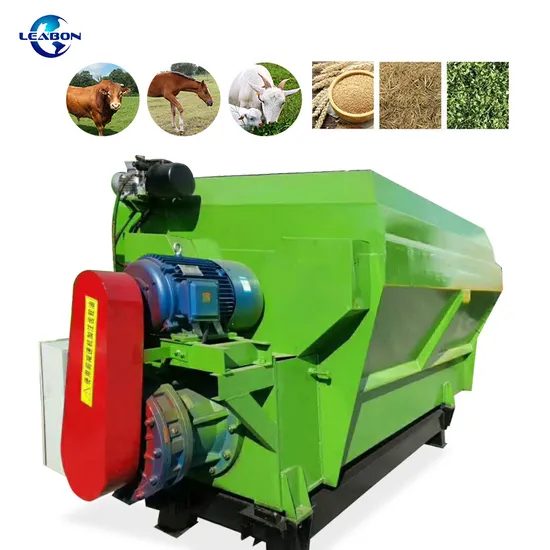

1.Horizontal TMR Feeder Mixer
Feed mixer (TMR) is suitable for a variety of pastures, can mix a variety of hay, silage feed and other fiber feed and mixed feeding directly. The machine can reduce the labor intensity of artificial feeding, save feeding costs, improve economic efficiency. The TMR feed mixer can increase the dry matter intake, increase the milk production, improve milk quality, reduce the incidence of dairy cattle, increase feed utilization, save feed costs, and provide labor productivity.
Horizontal TMR mixers are divided into three types
1)Electric Motor Type
2)Diesel Engine Type
3)PTO Type
Technical Of Horizontal Type Mixer Parameter

Model	9TMRW3	9TMRW-5	9TMRW-9	9TMRW-12
Motor Power(kw)	11	15	22	30
Capacity(kg/h)	1000-1500kgs/h	2000-3000kgs/h	4000-5000kgs/h	6000-7000kgs/h
QTY of blades(PCS)	33	40	58	69
QTY of twisted dragon(PCS)	3	3	3	3
Bottom plate thickness	5mm	6mm	8mm	10mm
Side plate thickness	4mm	5mm	6mm	6mm
Reducer	Jiangsu JZQ400	Jiangsu Guomao R137	Jiangsu Guomao R147	Jiangsu Guomao R149
Dimension(mm)	3600*1700*1900	3900*1800*2100	4600*2000*2500	5300*2200*2600
Weight(kg)	1700	2300	3200	4100

2.Vertical TMR Feeder Mixer
The machine is mainly composed of one or two augers. The spiral auger is divided into left and right rotations. During mixing and stirring, the material is simultaneously stirred and stirred at the middle position of the mixer from each direction of both ends of the box. Each spiral lead on the spiral body is equipped with a moving blade, and the fixed teeth on the center line of the feed mixer are used for cutting work. The various fibrous forages and straws passed through are cut and agitated so as to achieve complete mixing of the crushed and mixed Dietary feeding effect.
Vertical TMR mixers are divided into three types
1)Electric Motor Type
2)Diesel Engine Type
3)PTO Type
Technical Of Vertical Type Mixer Parameter

Model	9TMRL-5	9TMRL-9	9TMRL-12	9TMRL-16
Motor Power(kw)	15	22	30	22+22
Capacity(T/H)	2-3t/h	4-5t/h	6-7t/h	8-10t/h
QTY of blades(PCS)	5	8	8	16
QTY of twisted dragon(PCS)	1	1	1	1
Bottom plate thickness	14mm	16mm	16mm	18mm
Side plate thickness	5mm	8mm	8mm	8mm
QTY of twisted dragon(PCS)	Nanchang JiangLing	Nanchang JiangLing	Nanchang JiangLing	Nanchang JiangLing
Dimension(mm)	3100*1900*2100mm	3900*2300*2500m	4600*2400*2600m	5800*2500*2600m
Weight(kg)	1900kg	2800kg	3600kg	5000kg

Raw Materials
Final Product
Application
Our Advantages
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .
After Sales Service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea
Our Company
Customer Feedback
Five-star praise form customer
FAQ

Q1:what are your raw material to mix? ------Grass, alfalfa, stalk, straw, grains powder

Q2:how many cubes do you need for this series mixer ? ------3CBM, 5CBM, 9CBM; 13CBM; 15CBM etc

Q3:What's the certification of your TMR feed mixer? ------CE Certification.

Q4:What's the warranty of TMR feed mixer? ------Warranty:1 Year(except spare parts).

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
