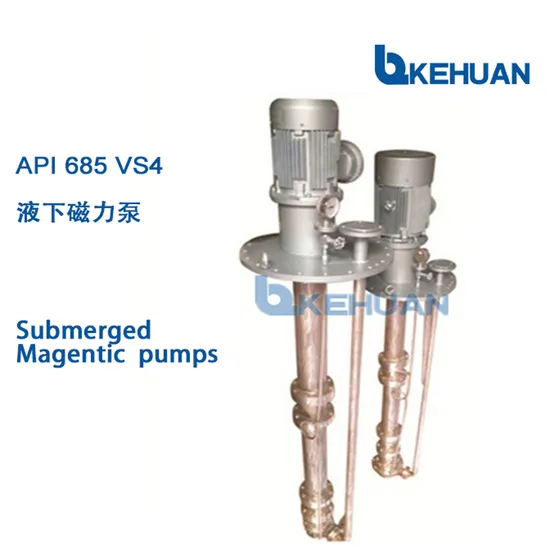

Vs4 Vertical Long Shaft Semi-Submerged Magnetic Driven Pump Sealed Pump

Product Description

Product introduction
The pump hydraulic model is from Europe with high efficiency. Two sets of hydraulic model is equipped at same outlet port. The flow range at BEP best efficiency point is wide.
Leakage-free is realized by static sealing gasket for all the sealing points and magnetic coupling driven. The nitrogen sealing is also not used, so the operation of pump is safe, economic and reliable.
The modular theory design makes compact structure, parts generalization and easy maintenance. The magnet material is made of special rare earth alloy with demagnetizing temperature up to 450 Degrees Celsius through special technology. So the pumps are guaranteed 15 years of operation life;
The slide bearing material is high purity of 99% silicon carbide, and all the friction couples of bearing are high quality silicon carbide.
Maximum submerged depth is 6 m.
The pump standard confirms to API 610, API 685 etc.
*Material:
Carbonsteel; chromed steel; austeniticstainlesssteel; duplexsteel; Titanium and Titanium Alloys; Hastelloy C-276 and other special materials; It depends the customer's request

PARTS NAME	S-6	A-8	D-1	TITANIUM	HAST C276
Casing	Cast steel	316 AUS	DUPLEX	Ti	HAST C
Impeller	12%CR	316 AUS	DUPLEX	Ti	HAST C
Containment shell	Hastelloy C276	Hastelloy C276	Hastelloy C276	Hastelloy C276	Hastelloy C276
Inner magnet rotor	304/SM2C017	316/	316/ SM2C017	Ti /SM2C017	HAST C/ SM2C017
Pump shaft	12%CR	316 AUS	2205	Ti	HAST C
Slide bearing	304/SSIC	316/SSIC	316/SSIC	Ti/SSIC	HAST C/SSIC

Containment shell
The containment shell is made fromHastelloy c-276formed by special technology without axial welding seam. So it ensures the sealing and chemical stability for containment shell.
The double layer of containment shell functions reliable double protection. It will be alarmed when the first layer of containment shell is leaked while the medium is still completely sealed without any leakage.
Slide bearing
The material of slide bearing is made from 97.5% purity rate of silicon carbide (SSIC),The working life of the wear resisting and high strength material is 10 times of normal silicon carbide baring and carbon bearing.
Ball bearing
Lubrication: Grease or Oil, It depends the customer's request
Magnetic material
The magnet material of Kehuan magnetic pump is permanent-magnet alloy with unidirectional temperature up to 450oc. It is a medium to pass on the moment of torsion in magnetic driven pump. It guaranteed a wide operating range and is highly resistant against demagnetization.
Company profile
Established in 2002, Dalian Kehuan Pump Co.,Ltd. is leading manufacturer on pump design and manufacture that meet the most exacting quality requirements.
Our pumps are used the advanced technology from Europe as a reference which are characteristically safe, highly efficient, environmental protection, energy-saving, and all of products are specially suitable for transporting corrosive, radioactive, toxic, explosive, vaporize and costly fluid. The pumps are widely used in chemical, petrochemical, fine chemicals and many other fields.
Advanced technology is the basis for everything. Dalian kehuan not only have advanced technology, but also provides high quality pumps and services with the rigorous design, manufacture and testing system. Our pumps are used to transport aggressive, toxic and explosive substances in the chemical and petrochemical industries. We play a major role in ensuring that plants in these industries operate reliably and in a manner that protects both people and the environment.
We are committed to quality and customer satisfaction, resulting in successful accreditation of our quality assurance system to ISO9001.
We are well-known in domestic market because of our High quality products and reliable quality assurance system, high efficiency performance and excellent solutions. Manufacturing Capacity
We have professional casting workshops and several outsourcing machining sub-contractors. All the casting parts are casted with plastic mould and metal die; impellers are casted by investment casting means,in order to guarantee excellent performance of products. Numerical control machine and all kinds of machining equipment with high precision as well as advanced machining process and excellent management mode can ensure manufacturing of pumps with perfect Performance.
First Class Inspection Ability
We have more than 30 inspection devices such as pump test station with national Level I qualification certificates, advanced balancing machine, metal analyzer, vibration meter, noise meter,roughness meter, hardness meter, paint thickness tester, mechanical seal rotation test and air tightness test devices as well as more than 500 various measurement instruments such as difference gauge, plug gauge, ring gauge, micrometer, tilt meter with high precision to ensure reliable and efficient pumps.
Technical Ability
Dalian Kehuan Pumps co.,Ltd. has its own technical development team including specialists,engineers and technicians who have a deep research on various pumps.
*We can provide all kinds of services related to pumps quickly such as pump R&D,reconstruction and. to surveying and drawing.
*We design pumps and mechanical seal with the help of computer aided design software such as CAD and SolidWorks.
*All of our products meet the following international standards,such as API 610, D1N, ANSI, ISO.
*We can design and optimize the pumps with our advanced technology in combination with customer's specific requirements.
*If you have any questions about our products,I hope you can contect me at you convenience.
Thank you for your concern.

---
