Agricultural Reversible Turning Plough with Hydraulic System for Ditching

US$3,900.00
1-4 Pieces
US$3,850.00
5-9 Pieces
US$3,700.00
10-19 Pieces
US$3,600.00
20+ Pieces

Basic Info.

Model NO.
Shuoxin 630/430/450/530/550
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Semi Hanging
Drive Type
Wheel Drive
Certification
CE
Color
Blue
Warranty
12 Months
Product Name
Agricultural Reversible Turning Plough
Weight
1268kg
Working Width
1600-2500mm
Keywords
Plough /Plow
Functions
Cultivating Soil
Feature
Primary Tillage
Use
Rotating Shaft to Dig Into Soil
Power Type
Wheel
Transport Package
Iron Frame Packing
Specification
340/360/440/450/540/550/630
Trademark
Shuoxin
Origin
China
HS Code
8432100000
Production Capacity
100 Set/Sets Per Month

Product Description

Product Description

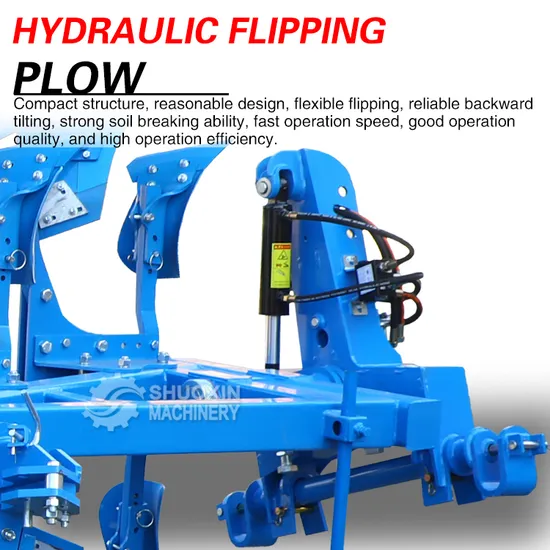

Hydraulic Plow/Plough Hydraulic reversible turning machine plow for agricultural equipment tractor
The main plow arm and plow arm are made of high-strength alloy steel through special heat treatment and have very ood yield strength and tensile strength. Safety bolt structure effectively prevents overload and protects the main plow arm.
Wear-resistant structure on the plow side plate for increased service life. Adjust the adjusting lever on the back of the bar to adjust the tilting surface for the optimal stubble burial.
Simple plywood construction machined from special material that are flexible,lightweight and very strong.















Model
Main frame size
Power(hp)
Working width mm
plowshare
1LF-340
100*100
90-120
3*400
Split plow tip
1LF-360
100*140
120-150
3*600
LEMKEN style plow share
LFT-360 Adjustable
120*120
120-150

LEMKEN style plow share,Double-nut ball screw
1LF-440
100*140
120-150
4*400
Split plow tip
1LFT-440
Adjustable
120*120
120-150

Double-nut ball screw
1LF-450
140*140
160-200
4*500
LEMKEN style plow share
1LFT-450
Adjustable
120*120,140*140
160-200

LEMKEN style plow share,Double-nut ball screw
1LF-550
140*140
220-250
5*500
LEMKEN style plow share
1LFT-550
Adjustable
140*140
220-250

LEMKEN style plow share,Double-nut ball screw
