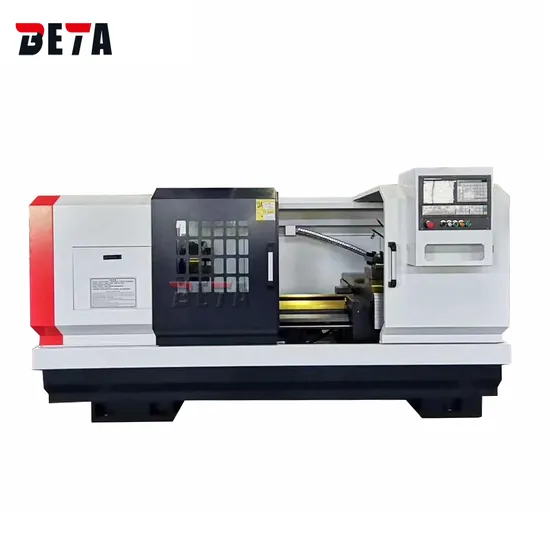

Ck6160 Horizontal 1500mm Center Distance Metal Turning CNC Lathe

US$25,000.00

1-4 Sets

US$15,000.00

5+ Sets

Basic Info.

Model NO.

CK6160/1500

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Name

Horizontal 1500mm Distance Metal Turning Lathe

Model

Ck6160

CNC Controller

GSK/Siemens/Fanuc CNC Controller

Max.Swing Over Bed

600mm

Max. Turning Length

1500mm

Spindle Bore Diameter

82mm

Chuck

Manual Chuck

Tool Turret

Electrical Turret 4-Station

Delivery Time

1 Month

Warranty Time

12 Months

Guideway

Horizontal Hardened Guideway

Tailstock

Manual Tailstock

Hydraulic Chuck

Optional Choice

Voltage

380V

Transport Package

Wooden Case

Specification

2000MM

Trademark

BETA

Origin

Shandong, China

Production Capacity

100 Sets Per Month

Product Description

CK6160 Horizontal 1500mm Center Distance Metal Turning CNC Lathe
Standard accessories:
Flat bed structure, hardened guideway,
width of guide 400mm, Max.swing over bed 600mm,
Spindle bore diameter 82mm(130mm is optional),
Distance between points 1000/1500/2000mm,
Spindle motor power 7.5kw,
Spindle frequency converter speed adjustment,
CNC controller GSK
10 inch manual 3-jaw chuck ,
4-way electric toolpost,
manual tailstock,
automatic coolant system and lubrication system,
work light, tools & Tool box, English operate manual
Optional accessories:
Siemens/Fanuc CNC controller,
Hydraulic chuck,
Hydraulic tailstock,
6/8-station turret,

Model	CK6160/2000
Max. swing over bed	Φ600 mm
Max. swing over cross slide	Φ395 mm
Type of guideway	Hardened guideway
Width of guideway	400mm
Max. Turning diameter (disc type workpiece)	600mm
Max. Turning length	1850mm
Spindle bore	Φ82 mm
Max. diameter of the bar	Φ80 mm
Spindle nose	A2-8
Taper of spindle front hole	Metric 90mm 1 : 20
Spindle speed	150-1800rpm variable speed spindle frequency control
Spindle motor power	7.5 kw
Chuck type	Manual 3-jaw chuck
Chuck size	250 mm
X/Z axis travel	320mm, 2000 mm
X/Z axis torque	5/7.5 N.m
X/Z axis rapid feeding speed	6/8 m/min
X/Z axis position accuracy	0.005 mm
X/Z axis repeatability	0.005 mm
Tool bar section	25x25 mm
Tailstock sleeve dia.	Φ75 mm
Tailstock sleeve travel	150 mm
Tailstock taper	MT5
N.W./G.W.	3400/3800 kg
Machine dimension	375017001820mm
