| US$53,000.00 | 1 Set (MOQ) |
| Category | Number | Model | Capacity(T/D) | Flake thickness(mm) | Roll size(mm) | Power(kw) | External dimensions(mm) | weight(ton) |
| Oat Flaking Mill | 1 | FO6100F | 40-50 | 0.4-0.5 | 600*1000 | 18.5*2+1.5+0.55 | 1900*2100*1900 | 6 |
| 2 | FO6100SF | 40-50 | 0.4-0.5 | 600*1000 | 37*1+0.75+0.55 | 2100*2000*1800 | 6.4 | |
| 3 | FO6080F | 30-40 | 0.4-0.5 | 600-800 | 15*2+1.5+0.55 | 1700*2100*1900 | 5.5 | |
| 4 | FO6080SF | 30-40 | 0.4-0.5 | 600*800 | 30*1+0.75+0.55 | 1900*2000*1800 | 5.5 |

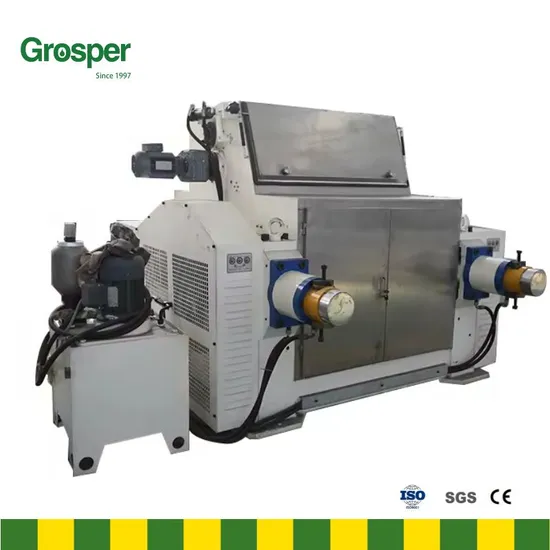

| FO6100F Flaker Technical Parameter | |||||
| 1 | Equipment name | FO6100F Flaker | 2 | Model | FO6100F |
| 3 | Chinese Trade Mark | Liaohai Pearl | 4 | Abroad Trade Mark | Grosper |
| 5 | Capacity(T/D) | 40-50 | 6 | Raw material | Oat |
| 7 | Roller size(mm) | 600*1000 | 8 | Chill depth(mm) | 25-30mm |
| 9 | Roller materials | High Ni Cr Mo alloy | 10 | Chill hardness (hs) | 75±3 |
| 11 | Flake thickness(mm) | 0.40-0.50 | 12 | Roller speed(rpm) | 260 |
| 13 | Total motor power(kW) | 39.05 | 14 | Drive motor power(kW) | 18.5*2 |
| 15 | Reducer power(kW) | 0.55 | 16 | Weight(≈t) | 6 |
| 17 | Dimensions(mm) | 2000*2100*1850 | 18 | Bearing type | 22320CCK/W33 |
| 19 | Pulley type | 5SPB630-4040-90,5SPB170-3020-48, | |||
