50dBm 1150-1620MHz GPS Wideband Amplifier RF Power Amplifier for Cusomize

Product Description

PRODUCT DESCRIPTION:

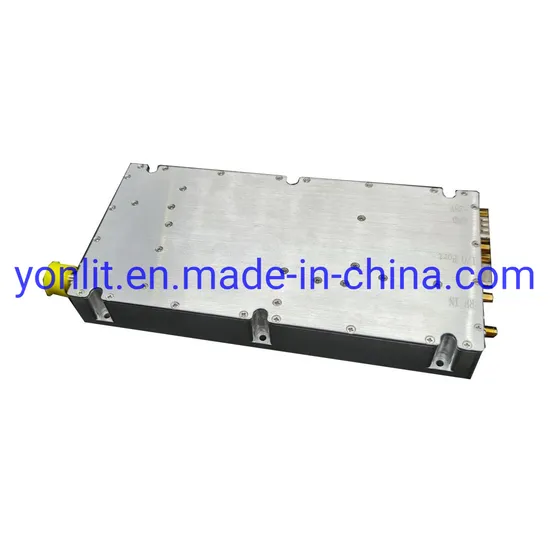

This wideband Power Amplifier module is working for L&GPS RF bands, model type: PWR-GPS-WB with aluminum case, it need operating on heatsink.
This product are using GaN technology that is able to cover the superwide bandwidth, power range can be customized from 44-50dBm. PA are equiped with over-high VSWR and over-high power protection to avoid/reduce the damage from any misoperation. I/O Port is compatible with DB9 serial port.
More function and parameters are avaiable to customized according to actual requirement.
TECHNICAL SPECIFICATION:
Frequency: 1150-1600MHz
Output Power: 100 watts
Input Power: 0-5dBm
Efficiency >35% (CW)
Modulations: CW, AM, FM
Class of amplifier: Class AB
Operating case temperature: -40 to +60oC
DC Input: +28VDC

PAYMENT TERMS, ORDER INFO & PACKING
We accept T/T and Western Union for payment.
Leadtime within 1 month, subject to actual requirement might have change.
Product will got packed in carton with foam, each unit will have single box for packing.
If need more information, please send us email.
