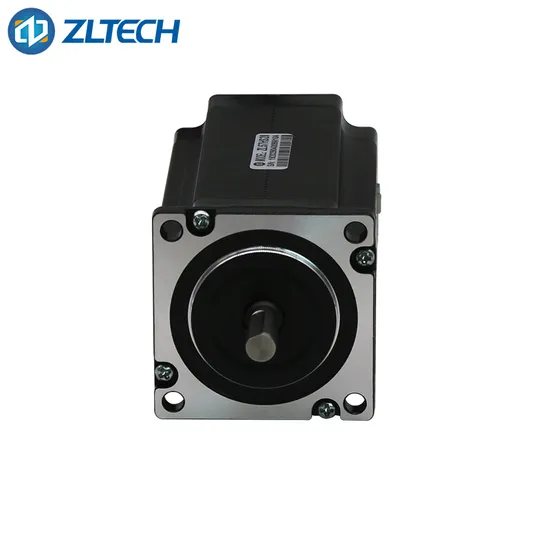

2 Phase 1.8 Degree 57mm NEMA 23 2.8n. M 5A DC 24V-50V Hybrid Digital Stepper Stepping Motor and Driver Kit for CNC Machine

Product Description

2 phase 1.8 degree 57mm nema 23 2.8N.m 5A DC 24V-50V hybrid digital stepper stepping motor and driver kit for CNC machine
Performance parameter

Item	ZL57HS28
Shaft	Single Shaft
Size	Nema23
step angle	1.8°
Step Accuracy	±5%
Temperature(°C)	85 Max
Ambient Temperature(°C)	-20~+50
Insulation Resistance	100MΩ Min 500VC DC
Dielectric Strength	500VAC 1 minute
shaft diameter(mm)	8
shaft extension(mm)	platform(0.5*15)
shaft length(mm)	21
Holding Torque(N.m)	2.8
Rated Current(A)	5
Phase Resistance(Ω)	0.6
Phase Inductance(mH)	2
Rotor Inertia(g.cm2)	680
Lead Wire(No.)	4
Weight(g)	1500
Motor Length(mm)	100

Feature Large output torque, high speed and no step loss; Low heat, low noise, low vibration and high precision and long lifespan. Integrate stepper motor and driver in one motor. Stepper Motor material decomposition
Motor Diameter
Motor wiring
Attention
1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to the cooperation, strictly ensure the concentricity of the motor shaft and the load.
2. When the motor is connected to the driver, do not connect the wrong phase.
Assembling process
All kinds of 2 phase stepper motors for choice
Packaging & Shipping Motor weight: 50g
Motor length: 30mm
Package: carton with foam, quantity per carton will depend on the motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by train or by boat according to your requirements.
Company Information
1. Brief introduction:
Shenzhen Zhongling Technology Co., Ltd. is a high-tech enterprise specialized in R&D, production and sales of industrial automation transmission products; The company gathered a large number of R&D elites being engaged in motion control field for more than 10 years and constantly provide cost-effective motion control products for our partners.
2. Product ranges:
Robot Hub Servo Motor, Digital Stepper Driver, Closed Loop Stepper Driver, Low-voltage DC Servo Driver and Stepper Motor, Multi-axis Motion Controller etc.
3. Our service philosophy: Create value for customers.
4. Core value: Dedicated, innovative, virtuous, and pragmatic
5. Our vision: Being the most professional brand in the field of automation control, serving the global industry
Exhibition
Contact:
Tel: 0086-0755-29799302; Cel: 0086-13510984905;
FAQ:
1. Factory or trader?
We are factory, and have professional R&D team as introduced in company information.
2. How about the delivery?
- Sample: 3-5 days.
- Bulk order: 15-30 days.
3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.
4. Why choose us?
1. Factory Price & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control points, strict aging, finished product inspection.
5. Do you get the relevant certification?
All products are made according to ISO9001, CE requirements.
