RF Connector 7/16 DIN Female 1/2 Flexible Cable Good Price

Product Description

Product Description XIXIA's connectors have different types of RF cable, leaky cable, RET cable, like 7/16, 4.3-10, N, SMA, AISG and flange types which can divide into clamping and soldering types. There are straight and right angle design of the connectors and adapters.
Specification Data

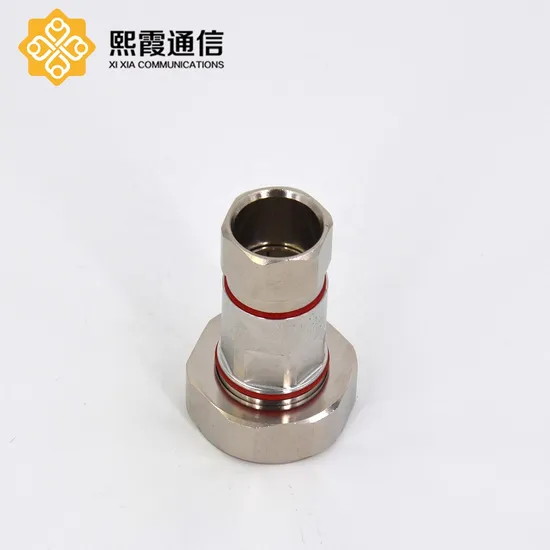

7/16F-1/2"L	7/16 Straight Female Connector for 1/2" Flexible RF Cable
Socket-Centre contact	Tin Bronze / Silver Plated
Outer contact & Body	Brass / Trimetal Plated
Dielectric	PTFE
Gasket	Silicon Rubber

Characteristics Impedance		50 Ohm
Insulation Resistance		≥5000MΩ
Centre contact resistance		≤0.40 mΩ
Outer contact resistance		≤0.20 mΩ
Dielectric Withstanding Voltage		2000V rms(AC)

Insertion Loss	@690-960 MHz	≤0.08dB
	@1700-2700 MHz	≤0.12dB
	@2700-3000 MHz	≤0.15dB
	@3000-5000 MHz	≤0.20dB
VSWR	@690-960 MHz	≤1.10
	@1700-2700 MHz	≤1.13
	@2700-3000 MHz	≤1.15
	@3000-5000 MHz	≤1.20
PIM3	@1800MHz	≤-155dBc

Automatic Line XIXIA also have automated production lines, manufacture capacity of each machine is over 10 thousand connectors per day. The total capacity is around 150,000pcs every day. It prompts the production more efficient and controls the quality better.
Company Profile Jiangsu Xixia Communication Technology Co., Ltd.
Founded in July, 2006, located in Yixing City,Jiangsu Province, China.
Xixia Communications is a professional telecommunication products and devices provider.
Products include connector, jumper, RF cable, antenna & accessories etc.
With our quality products, Xixia already distribute our products to over 15 province in China and 16different countries allover the word.
Qur business philosophy is mutual cooperation and win-win solution.

---
