Microwave Sensor for Detecting Forklift Moving Objects at Industrial Door Rvp42-7m

Product Description

Product Description RVP42-7BW Bluetooth Radar Motion Sensor for Industrial Doors
Product Introduction
The RVP42-7BW is a high-performance motion radar developed by Shenzhen JUTAI COMM CO., LTD. Specifically designed for industrial door systems, garage doors, cold storage doors, and barriers, this sensor offers reliable detection of both vehicles and pedestrians. The RVP42-7BW comes with Bluetooth functionality, allowing users to conveniently adjust the radar settings via a mobile app. It is equipped with advanced filtering technology, enabling it to distinguish and ignore laterally moving objects, ensuring optimal performance in various environments.

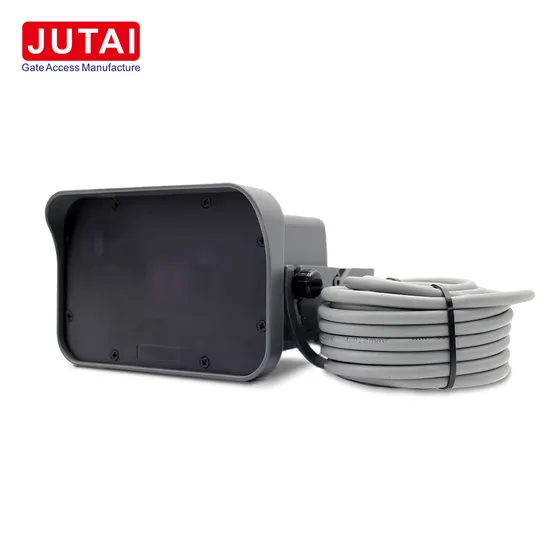

Appearance and Dimensions
This radar features a robust grey anodized aluminum and polycarbonate housing. The sensor's dimensions (including the bracket) are 164mm x 111mm x 94.5mm, with a total weight of 630g. Its compact design makes it suitable for installation in a wide range of locations.
Wiring and Installation
Power Supply: Operating voltage is 12 - 36VDC, with a current draw of less than 100mA. The power cables are color-coded for easy identification: black for ±12 - 36VDC, and red for +12 - 36VDC. Relay Output: The default relay output is NO (NC). The yellow wire is for relay 1 COM, and the green wire is for relay 1 NO. The status of the relay is indicated by a green LED light. Installation Guidelines: To ensure accurate performance, the sensor must be securely mounted on a flat, stable surface, away from any obstructions (such as banners or plants) that may interfere with the detection area. Avoid placing the sensor near fluorescent lights or metal objects, as they may disrupt its operation. Installation Height: The RVP42-7BW can be installed at heights ranging from 2 meters to 7 meters, allowing flexibility in different applications.
Technical Parameters
The RVP42-7BW uses Doppler radar technology to achieve highly accurate motion detection. It operates within a frequency of 24.125 GHz and has a low emission power of less than 20dBm. This radar sensor is designed to work efficiently in diverse conditions, with a wide temperature range from -30°C to +60°C and the ability to operate in environments with humidity levels from 0% to 95% (without condensation).
Parameter Specification

Emission Frequency	24.125 GHz
Emission Power	<20dBm
Temperature Range	-30°C to +60°C
Humidity	0% to 95%, no condensation
Maximum Vehicle Detection Speed	25 km/h
Cable Length	7m
Protection Grade	IP65

Bluetooth Parameter Configuration
The RVP42-7BW features Bluetooth connectivity, enabling seamless parameter adjustments via a mobile app. This feature provides enhanced convenience for installers and users, offering the ability to fine-tune detection settings remotely, optimizing performance without the need for physical access to the sensor. Key parameters that can be configured via Bluetooth include:
Detection Sensitivity Relay Output Settings Detection Area Mounting Height Direction Recognition Remote Control Operation
This radar sensor can also be powered on using the provided remote control. Simply press and hold the START button until it illuminates, indicating the sensor is powered on. In cases where the START button flashes, users should long-press it to turn off the sensor, reinstall the battery, and restart the process. The remote control is effective for the first 30 minutes after the radar is powered on. If more than 30 minutes have passed, the radar will need to be powered off and on again to enable the remote control functionality.


Applications
The RVP42-7BW is an ideal solution for a range of industrial door applications, offering precise motion detection for various types of doors, including:
Industrial Entrance Doors: Ensures smooth, hands-free operation in environments requiring high traffic flow. Cold Storage Doors: Perfect for refrigerated environments, where reliable detection and energy efficiency are crucial. Garage Doors: Offers quick response times for vehicle and pedestrian detection, enhancing security and convenience in parking facilities. Dock Doors: Maximizes operational efficiency by automating door functions in loading and unloading zones. Conclusion
The RVP42-7BW Bluetooth radar sensor provides a comprehensive, reliable, and easy-to-use solution for industrial door systems. With its advanced features, such as Bluetooth connectivity for remote configuration, high-precision motion detection, and robust environmental performance, it's the ideal choice for a wide range of industrial applications.
Product installation:
- Ensure the detector is securely mounted on a flat, stable surface to avoid vibrations.
- Make sure no objects such as plants or signs intrude into the detection area.
- Keep the detector unobscured, avoiding any covers or signage.
- Avoid placing fluorescent lamps near the detection area to prevent interference.
Our Solution
Detailed Photos

---
