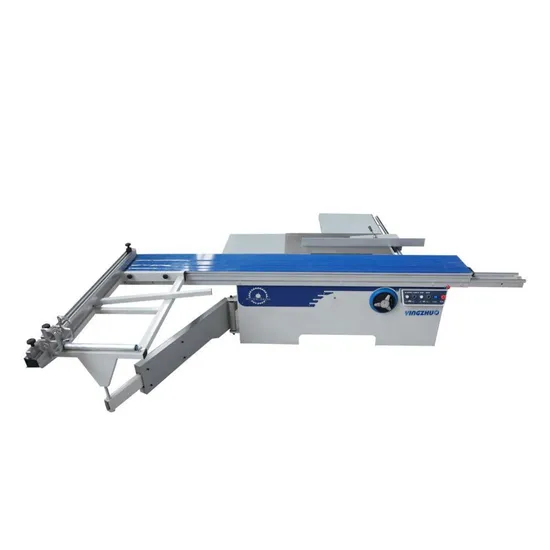

3200mm German Altendorf Structure 45 Degree Woodworking Sliding Table Circular Panel Saw Machine with Manual Lifting

US$1,210.00-1,510.00 1 Set (MOQ)

Basic Info.

Model NO.
YZ-32B
Power Type
Electric
Layout
Horizontal
Controlling Mode
Hydraulic Semi-automatic
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO, FDA
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online
Dimension of Sliding Table
3200*375mm
Max. Cutting Length
3200mm
Max. Cutting Width
1250mm
Max. Cutting Height
80mm
Main Motor Power
4.0kw
Scoring Motor Power
0.75kw
Main Saw Spindle Speed
4500-6000rpm
Rotation Speed of Scoring Saw
8000-9000rpm
Dia. of Main Saw Shaft
30mm
Dia. of Scoring Saw Shaft
20mm
Dia. of Main Saw Blade Blade
250mm-350mm
Max. Cutting Height at 45°
55mm
Tilting Angle of Saw Blades
0-45
Weight
600kg
OEM/ODM
Yes
Transport Package
Stretch Film or Wooden Packaging
Specification
3200mm*900mm*1000mm
Trademark
Yingzhuo
Origin
China
HS Code
846591
Production Capacity
2000 Sets/Year

Packaging & Delivery

Package Size
320.00cm * 90.00cm * 110.00cm
Package Gross Weight
600.000kg

Product Description


Product Description
Yingzhuo model YZ-32BF sliding table panel saw is a type of saw that is specifically designed for making precise cuts in various types of materials, including MDF (Medium Density Fibreboard), particleboards, wood-based panels, ABS boards (Acrylonitrile Butadiene Styrene), PVC boards, organic glass plates, and solid wood. It is particularly effective for cutting materials that have a similar hardness to the panels mentioned above. The panel saw typically has a large blade and a sliding table that allows for accurate and controlled cutting of these materials. It is commonly used in woodworking shops, furniture manufacturing, and construction industries.
1. Solid welded body frame to ensure the stability of the machine.
2. Double saw blade structure ensures cutting accuracy.
3. Suitable for cutting multiple layers of boards, density boards, acrylic and other materials.
4. Can achieve cutting at any angle from 0 to 45 °.
Model YZ-32B YZ-32BF YZ-32C YZ-32CF YZ-32E
Sliding table size 3200*375mm 3200*388mm 3200*388mm 3200*415mm 3200*405mm
Main motor power 4kw 5.5kw 5.5kw 5.5kw 5.5kw
Scoring saw motor power 0.75kw 1.1kw 1.1kw 1.1kw 1.1kw
Max. cutting length 3200mm 3200mm 3200mm 3200mm 3200mm
Max. cutting width 1250mm 1250mm 1250mm 1250mm 1250mm
Max. cutting height 80mm 80mm 80mm 80mm 80mm
Saw blade lifting Manual Manual Electric Electric Electric
Angle display Index dial Index dial Digital display Digital display Digital display
Sliding table form Manual Manual Manual Manual Automatic
Weight 600kg 700kg 750kg 850kg 850kg
Voltage 110v/220v/380v/415v 110v/220v/380v/415v 110v/220v/380v/415v 110v/220v/380v/415v 110v/220v/380v/415v


Certifications
Packaging & Shipping
Company Profile
YINGZHUO is a professional machinery and equipment technical enterprise that combines scientific research, exploration, manufacture, sales, and service. The company's motto is ''Customer first. Goodwill is the best policy''. Accordingly, it produces high-quality goods and customer service and has won the titles ''High Standard'', ''Fine Quality'', ''Famous Brand'' and ''Excellent Service'' from the government. Furthermore, its products are all ISO9001 2008 and CE certified. We here at YINGZHUO are dedicated to continually perfecting our performance and providing high-quality goods in appreciation for the support and cooperation of our customers.
Our Advantages
1. With more than 10 years of woodworking machinery production experience.
2. Can do OEM/ODM according to your request.
3. Passed ISO9001:2008 Certification, CE Certification, and SGS Certification.
4. Engineer is available to help customers overseas.
5. Within 24 hours response to inquiries and quick after-sales service.
6. We offer operation and adjustment videos of machines for the customers.
FAQ
1. How to place an order?
You can order online by Made-in-China, or email us your detailed needs, and we will contact you immediately and help you proceed with the orders.
2. What payment do you accept?We offer the pricing to be EXW, with shipping options including FOB, C&F, and CIF. Payment will involve a 30% deposit via T/T before production, with the remaining 70% balance to be paid before shipment.3. What is your delivery time?We anticipate a production time of 20 days after receipt of the deposit. We have our forwarder and we have long-term cooperation and a close relationship with each other, so there is no problem in shipment.
4. What's your warranty?We offer a warranty of 1 year from the date of goods received.5. What are your services?One-stop service meets the needs of customers from individuals to international companies.
OEM service is accepted.
After-sale Service: An experienced and knowledgeable technical support team that provides engineer overseas service.6. What are your international trade incoterms?Usually EXW/FOB Qingdao China but also can be CIF/DDU/DDP to your side if you need.
