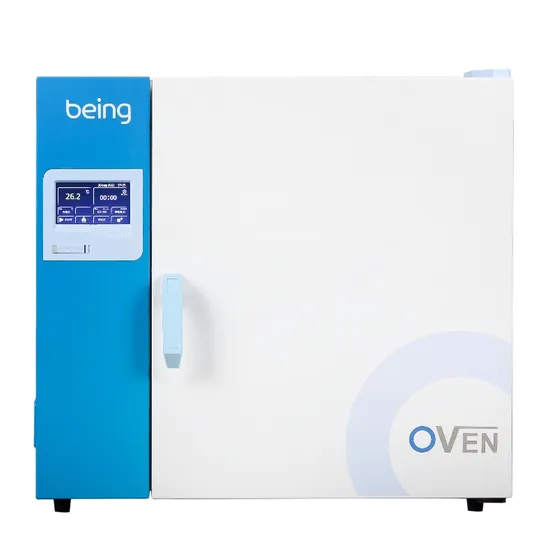

Natural Convection Hot Air Circulating Industry Lab Drying Oven

Product Description

Natural Convection Oven The high temperature drying oven provides a stable high temperature environment through precise temperature control, which enables drying and disinfection of glassware, solid objects, solid materials, process equipment, etc. In this type of oven the temperature distribution is based on warm air moving upwards (see diagram). There is no fan that actively distributes the air inside the chamber. The benefit of this technology is very low air turbulences for gentle drying and heating. Intelligent It provides two options: colorful touch screen controller and LCD controller. It is easy to operate. (Professional type LCD controller) specialization Tested and manufactured using the international DlN-12880-2007 standard. Provide professional temperature control, high temperature control accuracy and small temperature uniformity error. Adopt Environmental Design to effectively prevent heat loss, and the heating power is reduced by 20% compared with the traditional design. Stackable to save lab space. safety Protection of equipment: When the heating is out of control or exceeds the maximum limit temperature, the heating is automatically cut off, and the sound and light alarm reminds the operator. Protection of key components: The key electrical components are equipped with over-current, over-temperature, overload and other safety protection to prevent accidental equipment. Protection of the sample: When the temperature inside the box is higher or lower than the set temperature, the alarm will start to cut off the heater. Protection for users: The cabinet and door are specially insulated to make the surface temperature of the cabinet low, ensuring the operator's safety and no accidents. Provide fault information: When the device fails, the display will display fault information to ensure that the fault information is clear at a glance. Detailed Photos Product Parameters

Model	BO-30N BO-30NL	BO-50N BO-50NL	BO-115N BO-115NL	BO-200N BO-200NL
Capacity(L)	34L	54L	124L	222L
Temp Range	RT+10ºC-200ºC(MAX300ºC)
Display Resolution	0.1ºC
Uniformity at 100ºC	±2.5ºC
Heated to 100ºC	25mins
Standard Max number of shelves	2(5)	2(6)	2(10)	2(16)
Max load per shelf	20Kg
NW	43Kg	45Kg	74Kg	103Kg
Timing Range	1-5999mins
Interior Dimension WxDxH(mm)	320×300×360	400×330×415	520×450×530	650×500×685
Exterior Dimension WxDxH(mm)	610×520×580	690×468×640	810×590×755	940×658×910
Electrical Requirement	AC220V,50Hz
Power Consumption	850W	1050W	1950W	2250W

More Products

Product Picture	Product Name	Temp Range	Capacity(L)	Detail
	Heating incubator	RT+5 - 80ºC	35L,67L,146L,253L	Click on
	Vacuum oven	RT+10ºC - 200ºC	24L,51L,91L,125L,216L	Click on
	Water bath	RT+5 - 100ºC	5L,12L,22L	Click on
